3DLiftLens

3DLiftLens turns an iPhone Pro into a survey tool for lift shafts.

Point the device at the shaft and it captures the geometry in about twenty minutes, instead of the hours a tape measure and two technicians would take. The scan uploads to your company account, and the dimensions are already calculated when you open it.

THE NUMBERS COME OUT ON THEIR OWN

• Pit depth, travel, headroom and clear width, calculated from the model
• The shaft measured every 10 cm over its full height
• The narrowest point found for you, instead of hunted for with a tape
• A survey PDF with the dimensions already in it, storey by storey
• Measure any extra point yourself, on the model, whenever you need to

FROM SURVEY TO QUOTE

A finished survey can be sent to suppliers for a quote from inside the platform — no email attachments, no re-sending drawings. Suppliers see the shaft specification and decide whether to bid.

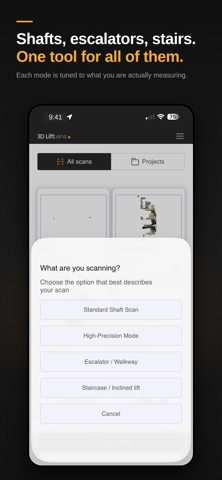

WHAT YOU CAN CAPTURE

• Standard shaft — the everyday survey
• High-precision mode — when the tolerances are tight
• Escalator and moving walkway
• Staircase and inclined lift — tuned to resolve individual steps

IN THE FIELD

• Capture a complete shaft with the device you already carry
• Pause the recording while you walk to the stairwell, then continue where you left off
• Review the scan on site, before you leave the building

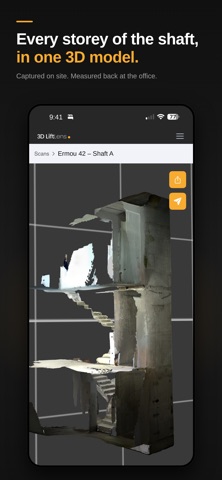

• See any scan in 3D and export the model when you need it

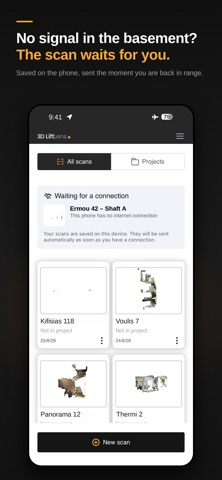

NO SIGNAL, NO PROBLEM

Shafts are in basements. Every scan is saved on the phone first and uploads on its own as soon as a connection returns. Nothing is lost because there was no signal.

PART OF YOUR COMPANY ACCOUNT

This app works with a 3DLiftLens company account. Your company administrator creates your account and you sign in here. Everything you capture belongs to your company, not to an individual device.

WHICH DEVICES

Scanning works on iPhone Pro models, from iPhone 12 Pro onwards, and on iPad Pro. Standard and Plus iPhone models cannot capture a scan. On those devices the app still opens and your existing scans are viewable, but a new survey is not possible.

Learn more at 3dliftlens.com
