ABT Go

ABT Go is the mobile tool for commissioning and maintenance tasks of Siemens devices used in building automation and control systems.
Available functions:
1) Access to Siemens devices for commissioning and maintenance tasks based on security authentication.
2) Support of Siemens devices: Desigo room automation DXR1/2.. or PXC3.E .., Desigo automation stations PXC4/5/7.., Siemens Intelligent Valve EVG/F

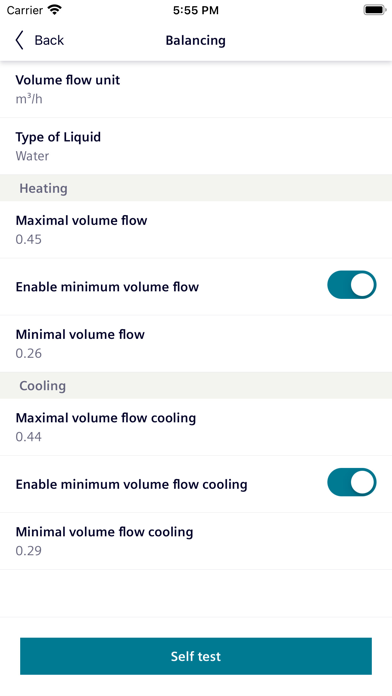

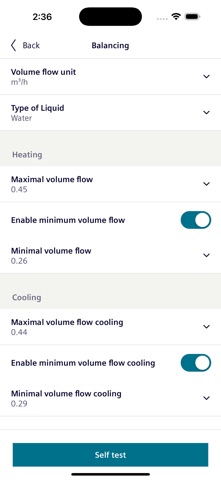

3) Support of software and configuration update incl. backup/restore as well as online configuration changes for DXR1 and EVG/F.
4) Fast overview of all devices in the network (name, type, IP address, location, equipment ID).

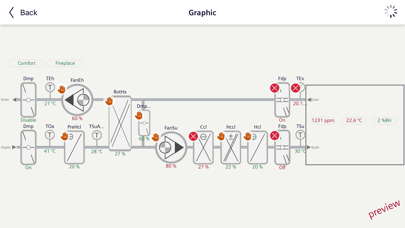

5) Easy and intuitive diagnostics in one list for all devices or via graphic for the DXR1/2… or PXC3.E..
6) Dashboard for a fast overview of the device commissioning status.
7) View, manage and report commissioning status of each data point (not checked, failed, passed).

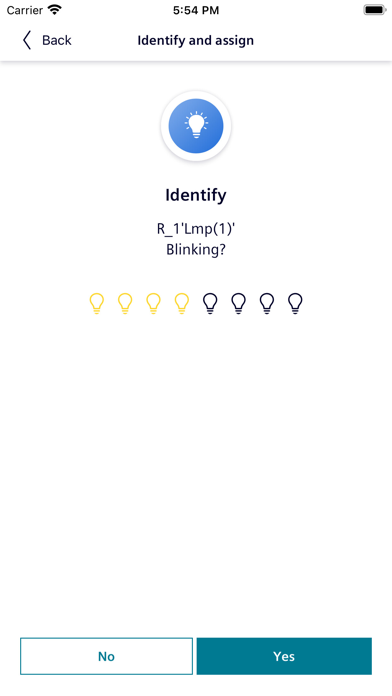

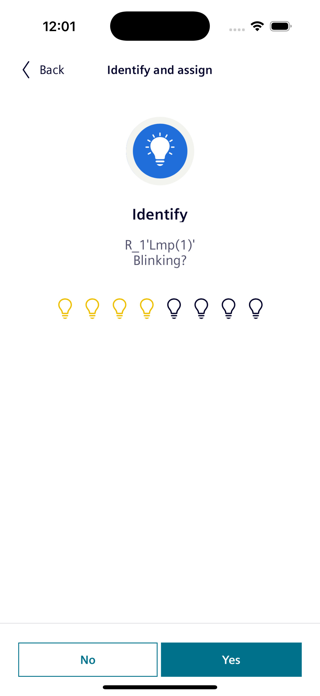

8) Add/change the assignment of KNX PL-Link devices for DXR1/2 .. or PXC3.E ..PXC4/5/7

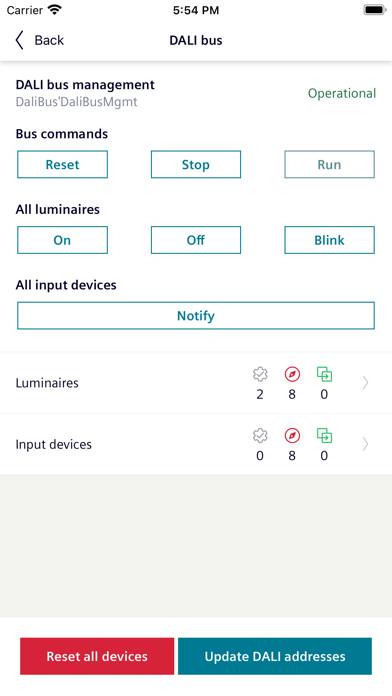

9) Add/change the assignment of DALI 1 and DALI 2 devices for PXC3.E ..
10) Indication of manually overridden data points and commanding of them.

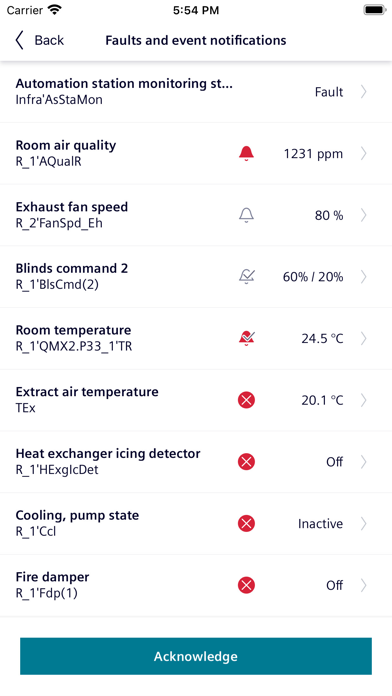

11) Indication of data points in alarm including reset/acknowledge for the DXR2… or PXC3.E.. or PXC4/5/7..
12) Check and change data point parameters and properties (I/O,PL-Link, ModBus, MBus).

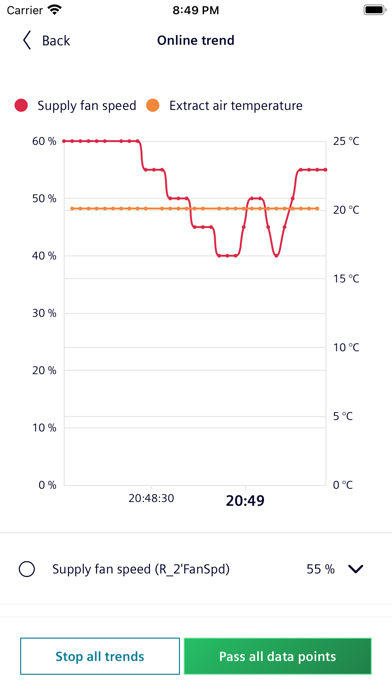

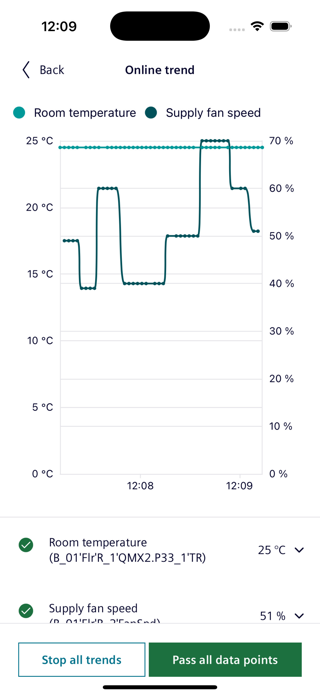

13) Online trending for data point testing
14) Support blinds command
15) Register as foreign device discovery
Requirements:
• Desigo room automation stations (DXR1/2... or PXC3.E..) from Siemens on Ethernet (BACnet/IP) or MS/TP (BACnet/MSTP).
• Desigo automation stations (PXC4/5..) for primary plants from Siemens on Ethernet (BACnet/IP) or MS/TP (BACnet/MSTP) or activated device access point
(WLAN) ) with application loaded, network setup finished.
• Siemens Intelligent Valve on Ethernet (BACnet/IP) or activated device access point (WLAN).
• Network communication established over WLAN (access point/router) to a BACnet/IP network that contains the Siemens devices in the same IP subnet (proxy
free) or over router to a BACnet/MSTP network.
• Power save mode disabled.
