AntWave: Antenna & Microwave

AntWave is a professional mobile calculation suite engineered by senior phased array antenna specialists, designed to deliver fast, deep, and efficient analytical support for antenna design, measurement, microwave system engineering, and RF analysis.
This application converts complex electromagnetic field equations into intuitive engineering results. Built entirely on SI units and high-precision physical constants, all algorithms ensure professional rigor. The app incorporates 30 core calculation and data modules covering the full design spectrum from fundamental physics to advanced system link budgets. It also features standard rectangular waveguide data tables and interactive charts for sky noise temperature and atmospheric/rain attenuation. Complex system and link budget modules support exporting and sharing calculated results as styled image data sheets.

[Core Feature Modules]
I. Basics
1. Reflection
2. Axial Ratio
• Conversion
• Amp & Phase
• Pol. Mismatch
3. Far Field Distance
4. Free Space Loss
5. Doppler Shift
6. RF Unit Conversion
7. Z / Y / S11 Conversion

II. Transmission Line
8. Skin Depth

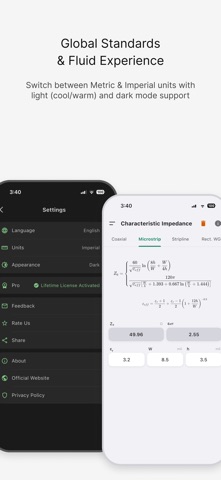

9. Characteristic Impedance
• Coaxial
• Microstrip
• Stripline
• Rect. WG
10. Waveguide Wavelength
• λc
• λg
11. Divider & Attenuator
• Power Divider
• Attenuator
12. Rectangular Waveguide

III. Antenna Metrics
13. Antenna Gain
• Circular
• Rectangular
• Directivity
14. Beamwidth
• Gen. Circ.
• Uni. Circ.
• Uni. Rect.
15. Antenna Noise Temp
16. Pointing Loss
17. Surface Accuracy Loss

IV. Phased Array
18. Spacing & Scan
• Element Spacing
• Max Scan Angle
19. Array Factor
• 1D Array
• 2D Array

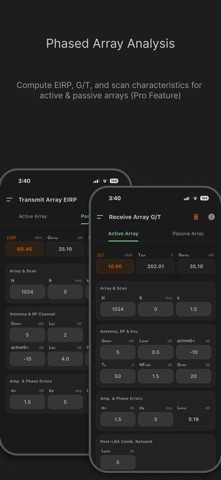

20. Transmit Array EIRP
• Active Array
• Passive Array
21. Receive Array G/T
• Active Array
• Passive Array

V. System & Link
22. RF Link
• Receive
• Transmit

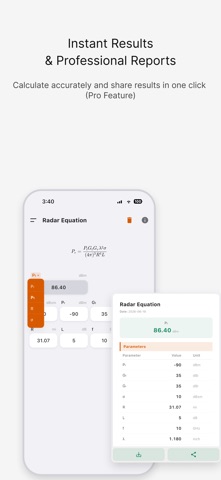

23. Radar Equation
24. Intermod & Spurious
• 2-Tone IMD
• Mixer Spurs

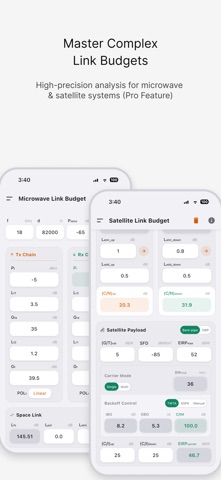

25. Microwave Link Budget
26. Satellite Link Budget
27. Antenna G/T
28. Sky Noise & Attenuation
• Sky Noise
• Atm. Attenuation

VI. Measurement & Tools
29. Antenna Measurement
• Gain
• Diff Slope
• Y-Factor Noise
30. Satellite Finder (GEO)

[Key Features]
• Expert Visual Logic: Clean 2D flat geometric UI without ads, ensuring engineers extract critical data quickly and clearly even in demanding field environments.
• 100% Offline & Private: No backend servers, no tracking of location, clipboard, or calculation data. As a professional tool, we guarantee technical data privacy.
• Real-Time Interactive Feedback: All calculation modules feature parameter synchronization and real-time result updates for rapid trade-offs and system optimization.

AntWave: Bringing precision and efficiency in complex engineering calculations right to your fingertips.
