ARB Compressor Connect

ARB Compressor Connect App can be used to control and monitor ARB Compressors that are equipped with the ARB Compressor Connect Module.

The ARB Compressor Connect Module is included in two kits, the Pressure Control kit used for tyre inflation and the Air Suspension Control kit for use with air bag suspension.

When used with the Pressure Control kit, 3 distinct modes allow complete control of the air outlet:
- Pressure Control mode allows you to Inflate/deflate tyres and other attached accessories to the pressure of your choice
- Pressure Max mode opens the valve, supplying full air pressure at the outlet, allowing the use of an air blow gun
- Pressure Off mode closes the valve, hence no air pressure at the outlet

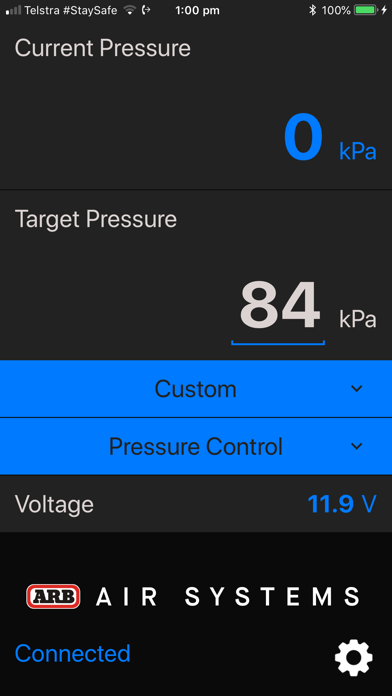

- Monitor the Current Pressure of the tyre being inflated/deflated
- Select the Target Pressure for Pressure Control mode from the presets, or manually adjust the target pressure
- Monitor the vehicle voltage

When used with the Air Suspension Control kit you can manually adjust the set pressure by tapping on it
- Adjust Suspension Now makes the Air Suspension Control check the pressure and adjust it if required
- Select from 4 user definable pressure presets
- Monitor the vehicle voltage

Through the Apps settings screen you can:
- Program up to 4 nameable pressure presets
- Set the Minimum System Pressure. For Air suspension this the minimum set pressure required by the air bags
- Set the Maximum System Pressure. For Pressure Control this is typically, 500kPa (70PSI), which is based on the lower limit of your compressors pressure switch. For Air Suspension Control this is the maximum set pressure required by the air bags
- Set pressure display units (kPa, PSI, bar)
- Set the Power On Mode. This determines which mode the ARB Compressor Connect module starts in when the compressor power is turned on. For example, if you set it to ‘Off’ then it will start in ‘Pressure Off’ mode and no air pressure will available at the outlet However if you set it to ‘Max’ then it will start in ‘Pressure Max’ mode and full air pressure will be supplied at the outlet
- Set Allow Only If Engine Running mode. This prevents the ARB Compressor Connect from activating the compressor when the vehicles engine isn’t running. This is based on the voltage reading
- Disable System (deflate to zero). This completely deflates the airbags and disables adjustment so they can be removed / serviced
- Recalibrate Pressure Sensor if the zero reading isn’t accurate
- Forget Wireless Connection. Disconnects and forgets the wireless connection with the ARB Compressor Connect Module. The App will restart to allow for a new wireless connection.
