BaseCalc Electric Calculator

BaseCalc Electric Calculator is an NEC-aware electrician calculator for job-site field math, worksheets, materials, and saved calculation history. Run voltage drop, wire size, conduit fill, service load, breaker, grounding, EV charger, generator, and other electrical calculator checks on site, then save the result for the job.

18 CALCULATORS FOR DAILY FIELD WORK
• Ohm's Law — solve voltage, current, resistance, and power from any two known values.
• Voltage Drop — single-phase or three-phase, copper or aluminum, with a 3% target check.

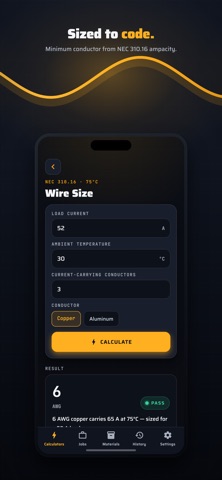

• Wire Size — minimum conductor sizing based on NEC 310.16 ampacity with temperature and conductor-count adjustment.
• Conduit Fill — fill percentage for EMT, PVC, RMC, IMC, FMC, and LFNC.
• Conduit Size — auto-recommend the first raceway size that passes fill.
• Box Fill — required box volume per NEC 314.16.
• Conduit Bend — fast offset bend mark calculations.
• Bend Layout — rolling offsets, 3-point saddles, and 4-point saddle layout guidance.
• Service Load — dwelling service/load sizing guide based on NEC 220 concepts.
• Breaker + Wire — continuous-load OCPD and conductor guidance.
• Grounding — EGC and GEC starting-point sizing.
• Motor Circuit — FLC, conductor ampacity, overload, and short-circuit/ground-fault guides.
• Pull Box — straight, angle, and U-pull box dimension guide.
• Derating — temperature correction and current-carrying conductor adjustment.
• EV Charger — branch circuit and service-load check.
• Generator — backup generator kW and output-current target.
• Transformer — kVA to full-load amperage.
• Power — kW, kVA, current, voltage, and power factor relationships.

EVERY RESULT IS EXPLAINED
• Clear pass/fail or sizing messages.
• The governing limit, final answer, and calculation breakdown.
• Saved local history so you keep a job-site record.

JOB RECORDS, MATERIALS, AND WORKSHEETS
• Save job contacts with site notes.
• Build job worksheets with scope, quantities, and site notes.
• Export worksheet PDFs for internal handoff or customer context.
• Plan common pull-list items before rough-in, trim, and closeout.
• Send the finished billing handoff to SpeakSheet for the final invoice.

DEVICE-LOCAL FOR THE FIELD
• Works offline by default.
• No BaseCalc account or cloud sync.
• Job contact, worksheet, setting, and calculation data is stored in local app storage, protected by your device security.
• There is no BaseCalc cloud option.
• Device backups, when available on your operating system, remain under your device-account settings.
• Dark and light themes with a high-contrast job-site interface.

BaseCalc Electric is a professional reference tool. Always verify against the current National Electrical Code and your local amendments. The authority having jurisdiction has the final say.
