Beam Deflection Calculator

Advanced Deflection Analysis for Non-Prismatic Beams

​Standard formulas are often insufficient for calculating the deflection of beams with varying cross-sections. This application utilizes an iterative calculation method to provide highly accurate structural analysis results.

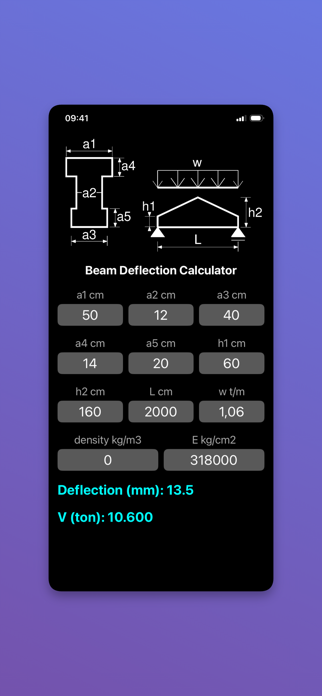

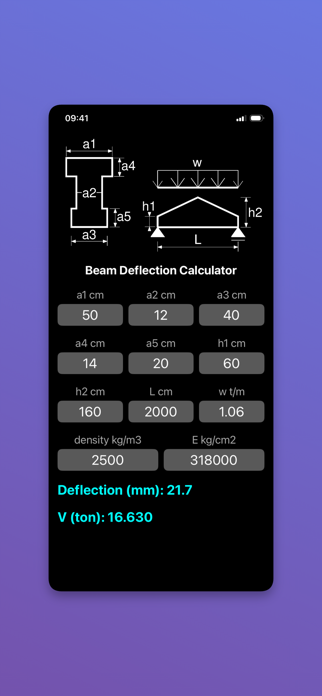

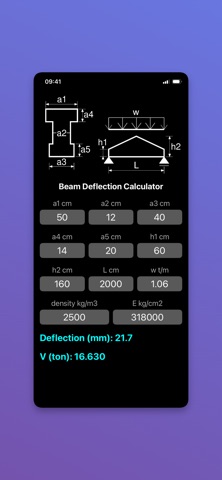

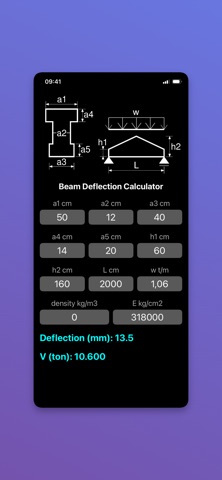

​By entering the required parameters, the app instantly calculates:

​Mid-span deflection
​Support shear forces
​Mid-span moment values
​The most critical point location based on the beam's moment-to-height ratio.
​Key Features:

​Automatic Dead Load Calculation: The program automatically accounts for the beam's self-weight.
​Flexible Loading: Users can easily input additional superimposed loads.
​Versatile Cross-Sections: Support for Rectangular, T-beam, and I-beam sections.
​Fixed or Variable Height: By setting h1 and h2 heights as equal, you can also perform calculations for constant-height (prismatic) beams.
​Material Customization: Easily analyze beams made of different materials by adjusting density and the Modulus of Elasticity (E).
​Designed for structural engineers, students, and architects who need precise results for complex beam geometries.
