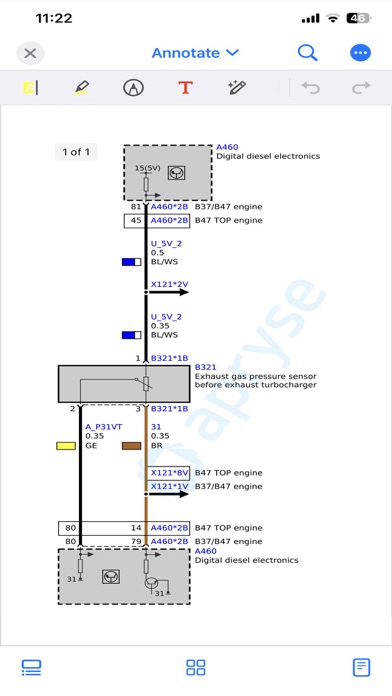

This application contains all electrical wiring diagrams and location of electronic components (ECU, Fuse Box..) for BMW cars from 1998 to 2023.
Regularly updated for trustful electrical wiring diagrams and can be used as a reference when you do repairing BMW cars.
Currently includes the following models (all models from 1998-2023) :
1 series : E81, E82, E87, E88, F20, F21, F40, F52
2 series : F22, F23, F45, F46, F87, G42, U06
3 series : E46, E90, E91, E92, E93, F30, F31, F34,
F35, F80, G20, G21, G28, G80
4 series : F32, F33, F36, F82, F83,G22, G23, G26,
G82, G83
5 series : E39, E60, E61, F10, F11, F07, F18, G30,
G31, G38, F90
6 series : E63, E64, F12, F13, F06, G32
7 series : E65, E66, E67, E68, F01, F02, F03, F04,
G11, G12
8 series : F91, F92, F93, G14, G15, G16
X series : E84, E83, E53, E70, E71, F48, F39, F25,
F97, F26, F98, F15, F85, F16, F86, G01,
G02, G05, G06, G07, G08
Z series : E52, E85, E89, G29
I series : I01, I12, I15, I20
Application features:
- Download function
- Print function
- Favorites
- No ads
