BlueBattery

BlueBattery is a Bluetooth Smart (BLE) based system to display and record vital electrical parameters of a RV battery system. The small outline device connects directly in line of the battery. An additional connection to the solar charger or booster completes the installation. This App displays all recorded data as well as live measurements.

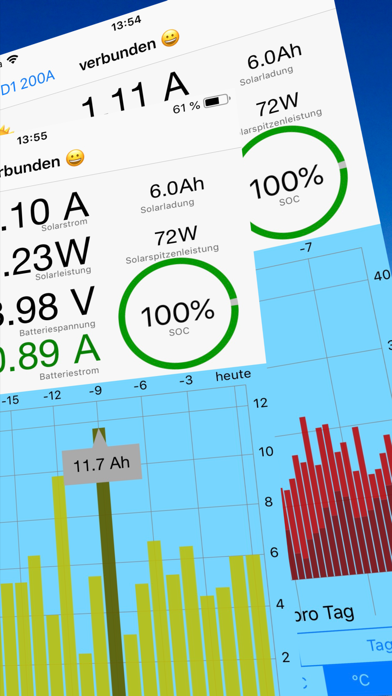

Live Data
Shows all important measurements from battery, solar, booster in real time.

Energiemix
The simultaneous connection to all devices allows for a complete energy overview with day-to-day readings.

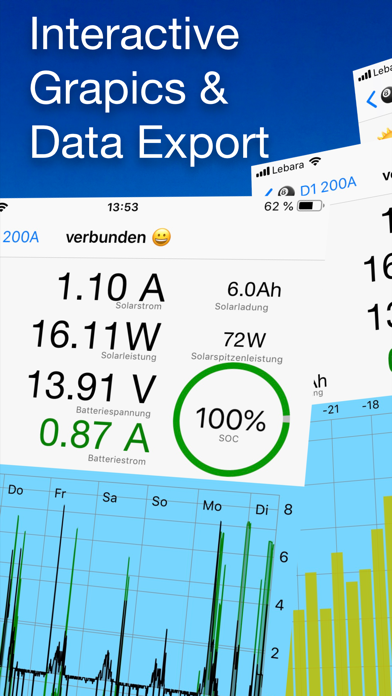

Historic Records
best for diagnosing and troubleshooting of your battery system
graphical overview of important measurements for the last 24 hours
daily min/max data
consumption, charging, solar summery
export to CSV file

Configure Settings
make all adjustments via touch interface and save it to the device
get an overview of all configuration settings

Firmware Updates
maintain your devices with included firmware
outdated versions will be prompted to update
manual firmware update

BlueBattery includes a complete battery computer and displays
- battery voltage (V)
- battery current (A)
- battery capacity (Ah)
- state of charge SOC (%)
- temperature (°C)

compatible to solar charge controllers from Alden, Büttner, Votronic (since 2013) and Victron MPPT
- solar power (W)
- solar charge current (A)
- solar panel voltage (V)
- battery voltage (V)
- status

compatible to boost chargers from Votronic VCC1212-20/-30/-50/-70/-90
- input voltage (V)
- output voltage (V)
- output current (A)

supported BlueBattery devices
- BBX200 Pro
- BBX400 Pro
- BlueBattery Black Edition

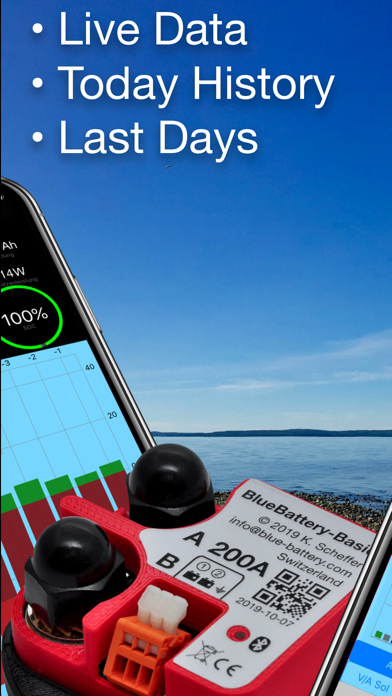

- BlueBattery-Basic

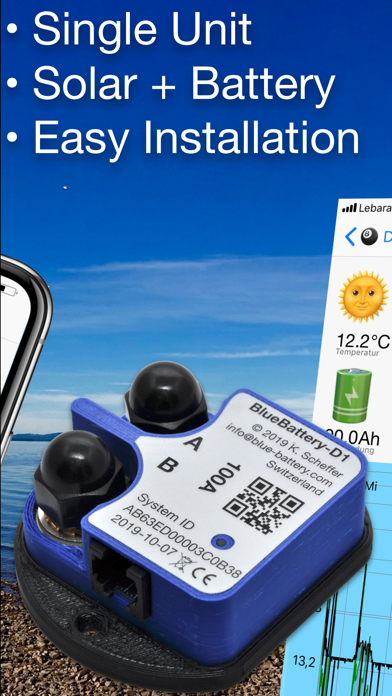

- BlueBattery D1
- BlueBattery D1 / D2 Black Edition
- BlueBattery X200 / X300
- BBX400
- Adapter D1
