Steel BBS Calculator A1 Pro

COMPLETE REBAR DETAILING & BBS SUITE FOR CIVIL ENGINEERS & CONTRACTORS

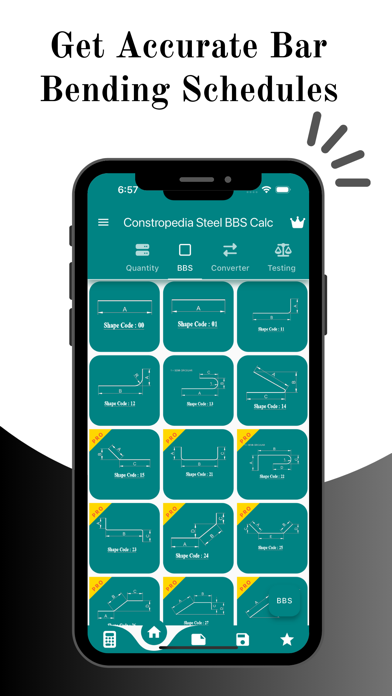

Constropedia Steel BBS Calculator is the complete civil and structural engineering companion for reinforced concrete (RCC) design, site rebar estimation, and Bar Bending Schedule generation.

COMPREHENSIVE STRUCTURAL MEMBER COVERAGE:
- Footings & Foundations: Isolated Footings, Raft / Mat Foundations, Combined Footings, Strap Footings, and Pile Caps.
- Vertical Elements: Columns (Rectangular & Circular), Boundary-Confined Shear Walls, and Bored Cast-in-Situ Piles.
- Beams & Slabs: Continuous Beams, Plinth Beams, One-Way & Two-Way Slabs, Flat Slabs with Drop Panels, Cantilever Slabs, and Circular Slabs.
- Specialized Structures: Lintel with Chajja (Sunshade), Staircases (Waist Slab), Vehicular Ramps, Rectangular Water Tanks, and Circular Water Tanks.

ENGINEERING CAD REINFORCEMENT DRAWINGS:
- Auto-generated structural drawings detailing main bars, distribution steel, ties, and shear stirrups.
- Pan and zoom CAD viewer with grid overlay and real-time parameter callouts.
- Clean diagrams formatted for direct engineering review and site execution.

SMART SITE REBAR CALCULATORS:
- Rebar Substitution: Calculate exact bar counts or spacing adjustments when site diameters differ from design drawings.
- Area of Steel (Ast): Multi-layer bar combinations, steel percentage checks, and reverse spacing lookups.
- Coupler vs Lap Splice: Determine exact cost savings and steel tonnage saved by switching to mechanical couplers.
- Binding Wire, Chairs & Spacers: Estimate wire bundles, rebar chair heights and weights, and cover block quantities accurately.

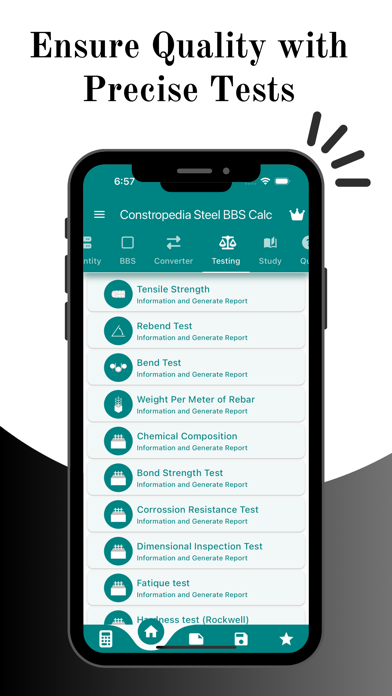

QUALITY ASSURANCE & LAB COMPLIANCE:
- Mill Test Certificate (MTC) evaluation against IS 1786, ASTM A615/A706, BS 4449, AS/NZS 4671, and CSA G30.18.
- Visual ISO 8501-1 Rust Grading guide with actionable site acceptance recommendations.
- Code-compliant sample frequency estimator by batch tonnage.

GLOBAL REGIONAL STANDARDS:
- Switch effortlessly between Metric and Imperial units.
- Dedicated regional bar catalogues: India (6mm to 40mm), USA (#3 to #18), UK (H8 to H40), Gulf (T8 to T32), Australia (N10 to N36), and Canada (10M to 55M).

PROFESSIONAL BRANDED PDF REPORTS:
- Export multi-page reports featuring scaled CAD details, entered design parameters, and complete BBS weight breakdowns.
- Custom corporate headers with company name, address, contact details, and engineer logo.
