CWI Welding Exam Prep

CWI WELDING EXAM PREP: PASS ALL THREE PARTS OF THE AWS CWI EXAM

The CWI exam has a 30 percent first-attempt pass rate. Most candidates fail because they treat it as a single test. It is three separate exams — Part A (Fundamentals), Part B (Practical), and Part C (Code Book) — each requiring different preparation. This app is built around all three.

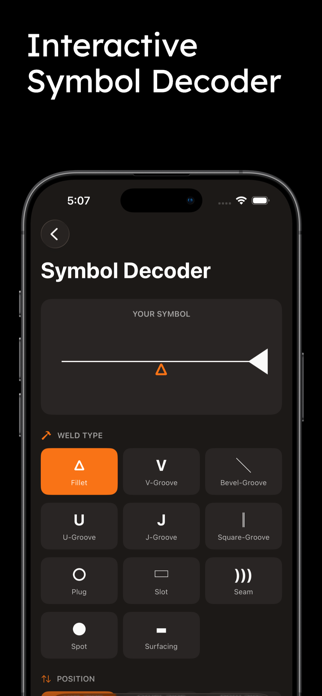

WELD SYMBOL DECODER

Weld symbols are tested heavily on Part A and appear throughout Part C. This tool lets you build any symbol and get an instant plain-English interpretation based on AWS A2.4.

Select your weld type: fillet, groove (V, bevel, U, J, square), plug, slot, spot, seam, surfacing.
Choose position: arrow side, other side, both sides.
Add supplementary symbols: field weld, weld all around, melt-through.
Set contour and finishing requirements.
Get the decoded meaning instantly.

The same symbols you will interpret on blueprints every day on the job.

Source: AWS A2.4 Standard Symbols for Welding, Brazing, and Nondestructive Examination — https://www.aws.org/standards
DISCONTINUITY REFERENCE

Identifying and classifying weld discontinuities is the core of Part B. This reference covers every discontinuity type.

Covered: porosity, slag inclusion, incomplete fusion, incomplete joint penetration, undercut, overlap, cracks (longitudinal, transverse, crater), arc strikes, underfill, laminations.

For each: visual description, probable causes, prevention, and AWS D1.1 acceptance criteria for both prequalified and qualified welds.

Source: AWS D1.1 Structural Welding Code — https://www.aws.org/standards

490+ PRACTICE QUESTIONS

Part A — Fundamentals (150 questions on actual exam):
Welding processes: SMAW, GMAW, GTAW, FCAW, SAW — parameters, applications, limitations.
Welding metallurgy: heat-affected zones, preheat, interpass temperature, post-weld heat treatment.
Weld symbols: AWS A2.4 interpretation, construction, and supplementary symbols.
Welding terminology: AWS A3.0 standard terms and definitions.
NDT methods: VT, PT, MT, RT, UT — capabilities, limitations, applications.
Welding safety: fire watch, PPE, fumes, electrical hazards, confined space.

Part B — Practical (50 questions on actual exam):
Visual inspection procedure and sequence.
Discontinuity identification from descriptions and specifications.
Measurement: fillet weld gauges, undercut depth, reinforcement, throat.
Acceptance criteria application: when to accept, when to reject.

Part C — Code Book (50 questions on actual exam):
AWS D1.1 Structural Welding Code: general requirements, design, prequalification, qualification, fabrication, inspection.
WPS (Welding Procedure Specification): required variables, essential variables, format.
PQR (Procedure Qualification Record): test required, acceptance, documentation.
Welder qualification: positions, test weld types, retesting requirements.
Code navigation: finding the right clause under exam time pressure.

FREE: 5 questions per day, symbol type reference, Part A overview. No account required.

MONTHLY ($9.99/month): Full 490+ question bank, complete Weld Symbol Decoder, Discontinuity Reference, D1.1 Code Navigator, progress tracking by exam part, 3-day free trial.
ANNUAL ($24.99/year): Everything in Monthly. Save over 75 percent. Best value.
LIFETIME ($49.99): One payment. Permanent access.

PASS PROMISE: Complete all questions with 80% or higher average, hold active subscription for 3 months, still do not pass. We extend your access by 4 months at no charge. voltexam.com/pass-promise
