El Tubero 2.0

This application is the updated and expanded version of Trazado de tubería El Tubero.

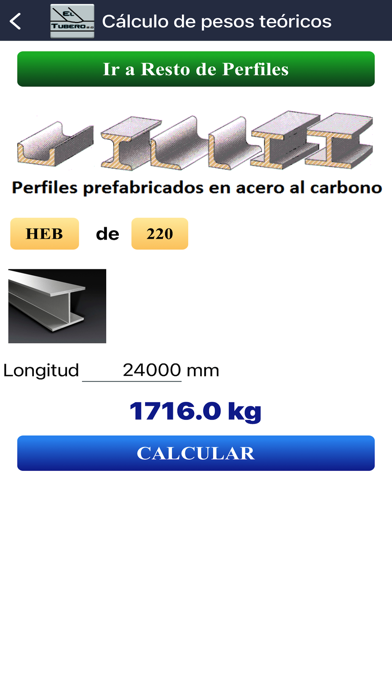

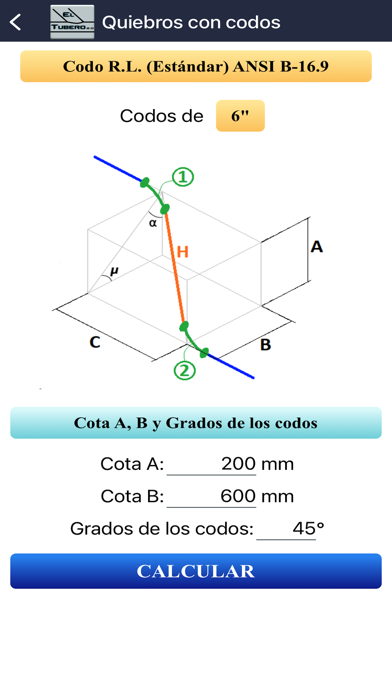

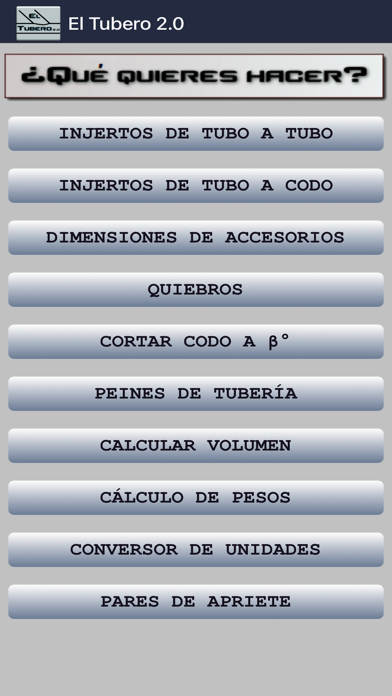

With it, you can calculate the development of any pipe branch, track fitting runs, calculate bends, elbow cutting dimensions, pipe combs, determine the size and number of bolts required for each flange, calculate volumes and weights, use a unit converter, and much more.

NEW FEATURES compared to El Tubero:
- Language options include Spanish, English, Chinese, Hindi, French, Bengali, Portuguese, Russian, Indonesian, Swahili, German, Japanese, Italian, Romanian, Turkish, Korean, Urdu, and Arabic.

- Calculate branch tapping.

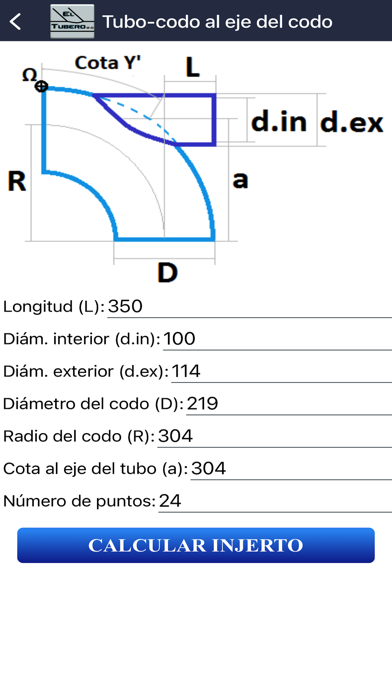

- Create pipe-to-elbow and elbow-to-pipe branches, including tapping.

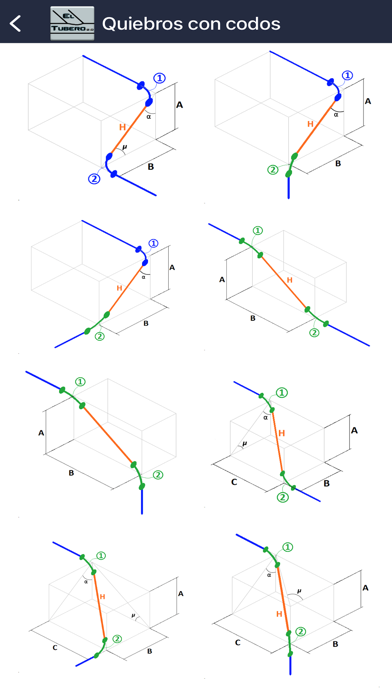

- Bevel-to-bevel bends.

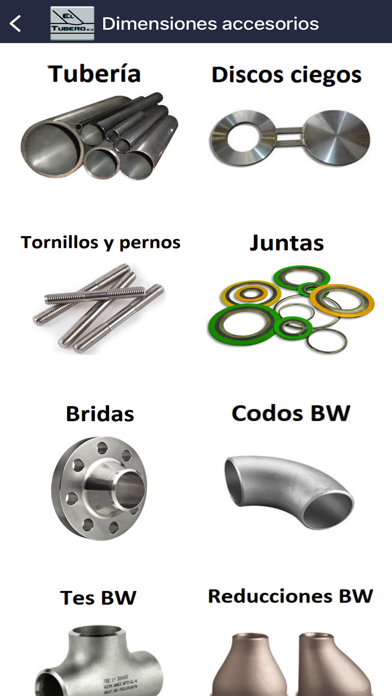

- Pipe dimensions from 14 different standards, including 9 metric stainless steel standards for the pharmaceutical and food industries.

- Dimensions of screws and bolts for 5 different standards. Also includes wrench dimensions in both millimeters and inches.

- Dimensions of gaskets for 6 different standards, including gaskets for RTJ flanges.

- Dimensions of flanges for 4 different standards, including metric stainless steel flanges for the pharmaceutical and food industries.

- Dimensions of BW elbows for 5 different standards, including metric stainless steel for the pharmaceutical and food industries.

- Dimensions of tees for both ANSI and the pharmaceutical and food industries.

- Dimensions of reducers for both ANSI and the pharmaceutical and food industries.

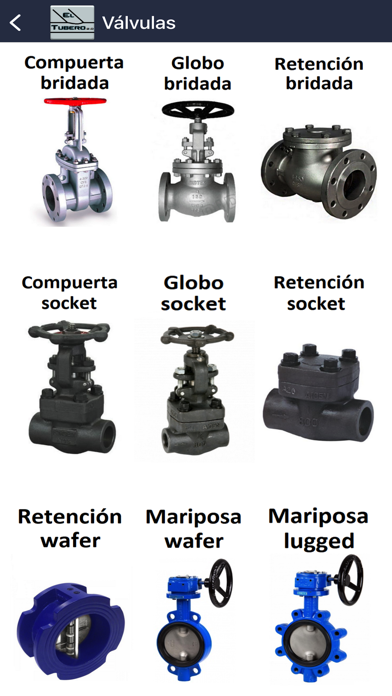

- Dimensions of valves: flanged gate, flanged globe, flanged check, SW gate, SW globe, SW check, wafer check, wafer butterfly, lugged butterfly, ANSI flanged ball, DIN flanged ball, and SW ball.

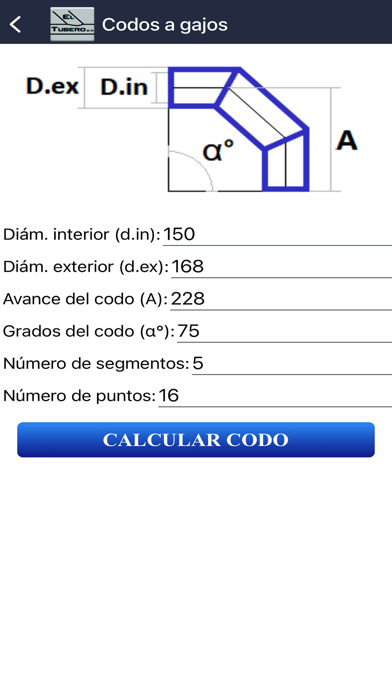

- Dimensions of flanged filters according to ANSI and DIN standards. - Cut elbows according to 5 different standards, including those used in the pharmaceutical and food industries. You can even manually specify the radius and diameter.

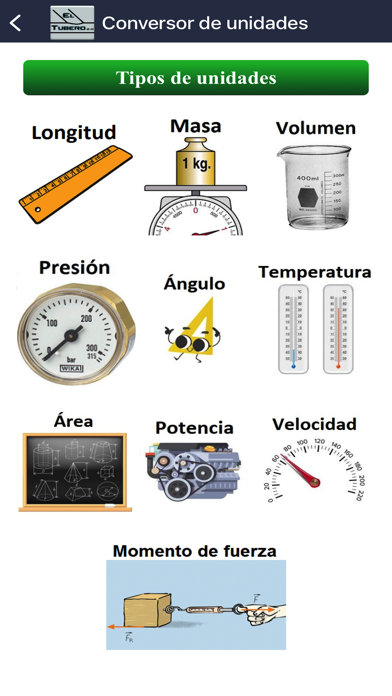

- Expanded and improved unit converter.

- Tightening torques for screws and bolts.

You can see a sample video at the following link:

https://www.youtube.com/watch?v=FDrwTxRHZD0

For any complaints or questions, please write to infoeltuberoios@gmail.com
