About Electrical Layout Capture Assistant

Electrical Layout Capture Assistant was an education app developed by Yuhsiu Lai. It was removed from the App Store Nov 23, 2025.

User Ratings

Electrical Layout Capture Assistant was rated 1.00 out of 5 stars, based on 11 ratings.

App Information

Electrical Layout Capture Assistant cost $4.99. The app size was 1.08 MB. The last available version was 5.2. The last update was on March 10, 2015.

Technical Requirements

The app had a content rating of Everyone. The app had been available on the App Store since December 2014.

Description by Yuhsiu Lai (from the App Store)

This tool will assist you in creating your own electrical plans.

This app is most useful for capturing existing or new electrical layouts of residential and commercial dwellings.

You can now capture electrical plans in seconds and share them online instantly.

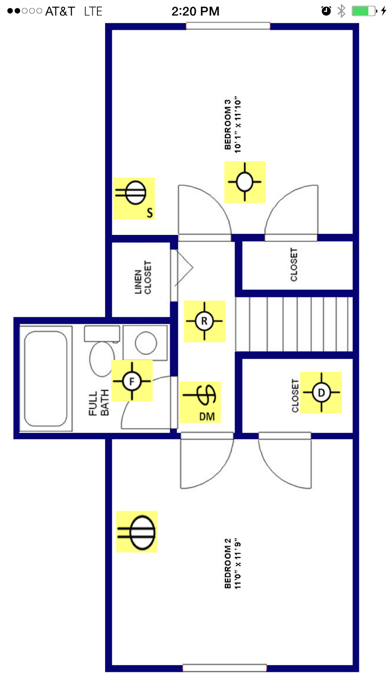

Simply single-tap with two fingers to bring up the symbol picker and grab any electrical symbol (lighting switch, receptacle, etc.)

Place symbols anywhere on the floor plans.

Single-tap with three fingers to capture the layout you created and save for future use.

Email the layout you created and the components schedule in pdf format instantly.

How to use:

In order to utilize this app, you need to have the floor plan in pdf format. The floor plan can be loaded to this app from the Email app.

- Use Email app to open pdf-formatted floor plan (click on the attachment within email and choose this app to open)
- Single-tap with two fingers: Bring up symbol picker and action buttons
- Single-tap with three fingers: Save screenshot of the layout in Photos library
- Grab button will add the symbol selected in pickerview to the layout.
- Double-tap with single finger on a symbol: Remove the symbol
- Singe-tap with one finger will remove symbol picker and action buttons
- Email button will generate a schedule (list) of components (symbols) used in an email

This app is developed and tested for all sizes and releases of iPhone and iPad.
