Electronics Engineer Helper

Digital toolbox for electronics engineers and electricians. Calculators and references for beginners and professionals — for work, study, DIY, and repair. Used by over 100,000 users. Completely ad-free.

Included tools:

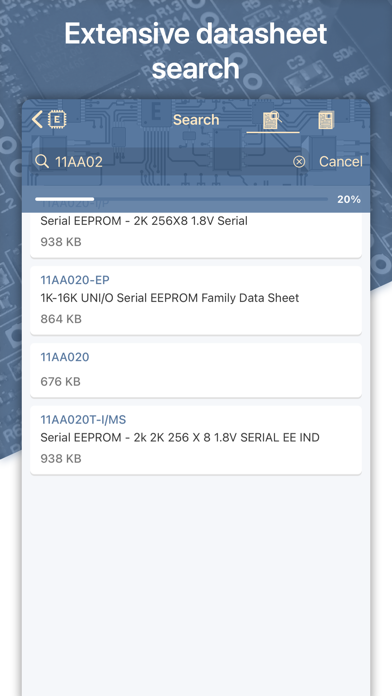

• Datasheet search

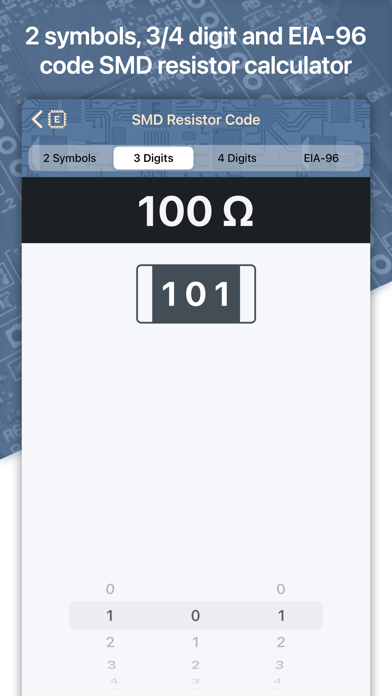

• Resistor color and digit marking (4, 5 and 6 band color code; 2 symbols, 3/4 digit and EIA-96 code SMD resistors code)

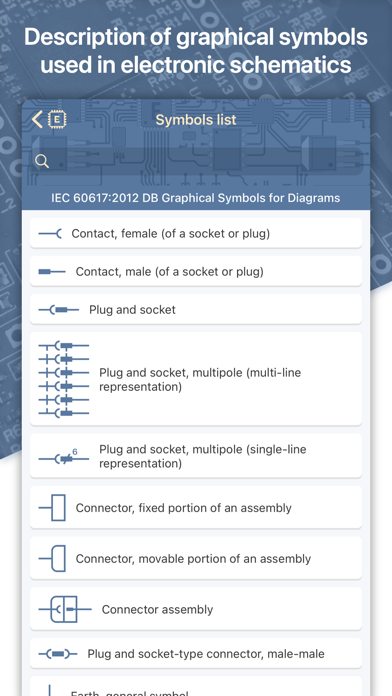

• Electronic schematic symbols (IEC 60617, IEEE 315 and GOST standards)

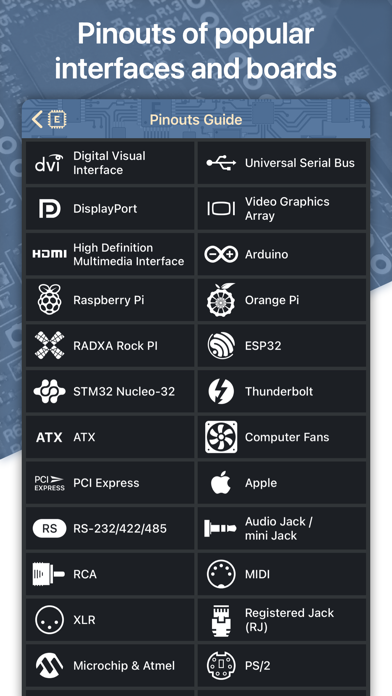

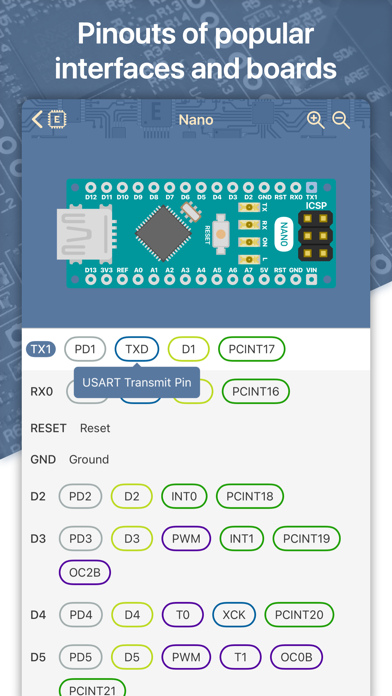

• Pinouts Guide (DVI, USB, Display Port, VGA, HDMI, Thunderbolt, Apple, RS-232/422/485, ATX, RCA, MIDI, XLR, Audio Jack, Arduino, Orange Pi, STM32, ESP32, and Raspberry Pi)

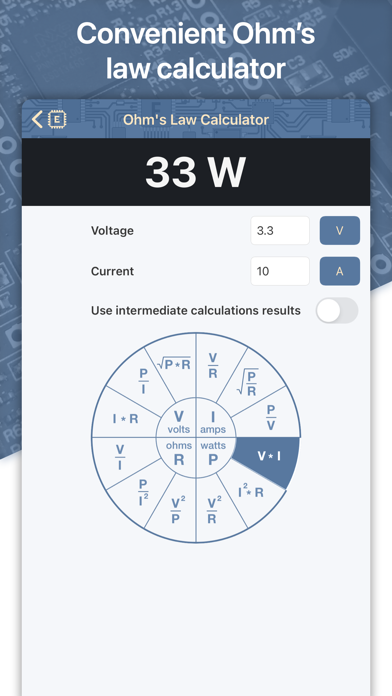

• Ohm's law calculator
• AWG converter (wire diameter, cross-section area, resistance and maximum current)

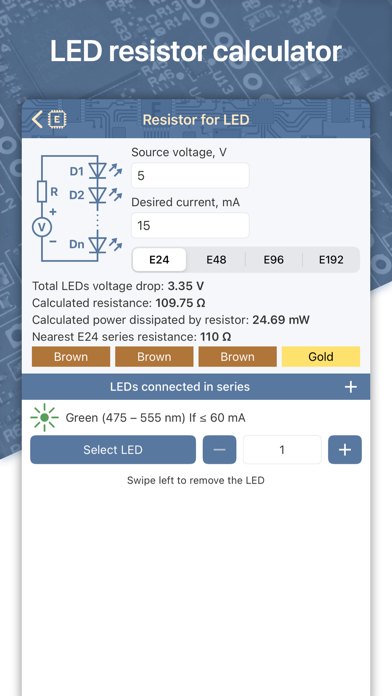

• Resistor for LED
• Voltage divider
• Capacitor code
• Capacitor markings
• Capacitor ESR tables
• Frequency response curve calculation of passive filters (RC, RL, RLC, LC)
• Inductor color code
• Linear current regulator
• SMD packages list
• Reactance
• PCB trace resistance
• Active, apparent and reactive power
• 555 waveform generator
• Operational amplifiers
• RLC circuit
• Number conversion
• Unit converter
• Cable voltage drop
• NTC thermistor resistance
• Logic gates
• RC circuit
• Decibels calculator
• 25-pair cable color code
• Fuse color marking

Additionally, by purchasing the PRO version of the app, you will get access to additional tools:
• SMD components marking codes
• Diodes color code (Pro Electron, JEDEC and JIS-C-7012 standards)
• Linear voltage regulator
• Resistor value to color marking converter
• Voltage rectifier
• Series or parallel electrical components' connection calculator
• Diode voltage drop
• Minimum PCB trace width
• Analog to digital conversion
• Attenuators
• 4-20 mA signal converter
• Thermocouple calculator
• Resistance thermometer
• Buck switching voltage regulator
• Wire resistance
