EMBER Smart Heating Control

One App, Four Systems!


EMBER Smart Heating Control has been updated to control a new range of EPH Controls products with the EMBER logo including the smart Radiator System RS and smart Underfloor System US.



Ask your installer for EPH EMBER today.



With improved and intuitive navigation you will have easier access to your homes heating system and improved control of multiple zones and multiple homes from the palm of your hand.



EMBER Smart Heating can control 4 types of heating systems:



EMBER PS – Programmer System.

Version 1: This system is comprised of our wireless enabled R-Series programmers, thermostats using the GW01 gateway
Version 2: This system is comprised of our wireless enabled R-Series version 2 programmers and thermostats using the GW04 gateway.


EMBER RS – Radiator System.
This system is comprised of our new RF16 controller, eTRV and eTRV-HW using the GW04 gateway.


EMBER TS – Thermostat System.
Version 1: This system is comprised of our WiFi ready CP4-OT and CP4-HW-OT thermostats using the GW03 gateway.
Version 2: This system is comprised of our version 2 WiFi ready CP4v2, CP4D and CP4-HW thermostats using the GW04 gateway


EMBER US –Underfloor System.
This system is comprised of our new Underfloor heating controller UFH10-RF and thermostats using the GW04 gateway.


New Features


Grouping
It is now possible to group zones to allow control of multiple areas at once, the user can set up to 10 groups and add their zones to these groups for easier control of the whole house.
Setback (PS and US only)
It is possible to set a heating zone to operate in a setback mode. This will allow the user to set a value from 1-10°C. When the system is timed off it will turn the temperature down by this value and activate if it falls below the lower level.


Quick Boost
It is now possible to set the Quick Boost temperature for heating zones with an expanded range.


Eco Monitor
The Eco monitor is now available on the TS and all version 2 products in the EMBER range. It can be activated in the Home Info section of the menu. It will show temperature logs for each zone and overall usage of the system in hours.



Advance Function (PS and US only)

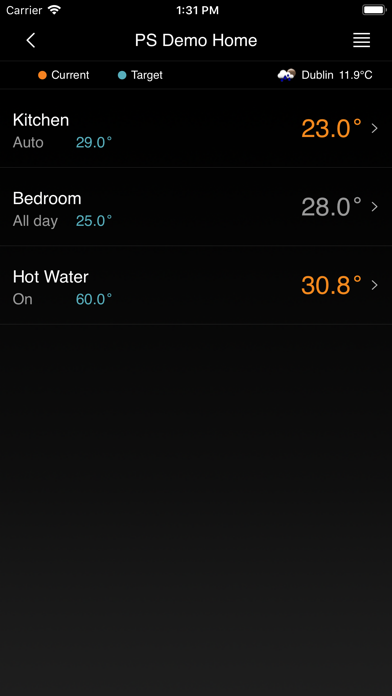

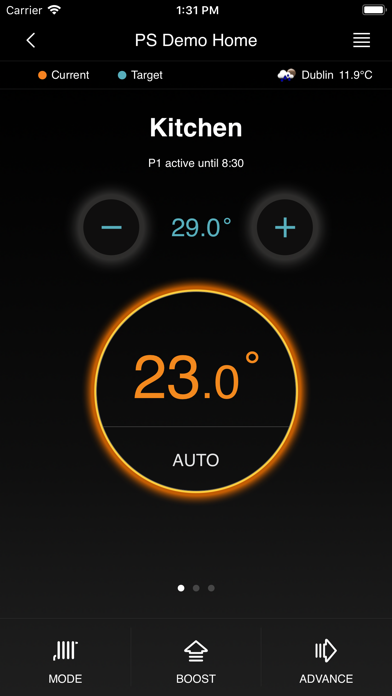

Advance function can now be activated from the Zone Control screen.



Improved Setup process
For enhanced security and convenience, this version allows the installer to set up a customer home with their own credentials. When the home owner logs in, the installer will be removed from the home and the home owner will be assigned Super Admin status.



Upgraded User Management
The user management function has been improved with an extra security layer and more detailed user information.



Schedule Overview
A complete overview of your programming schedule is now available on the Schedule screen
