Fabrication Calculator

One Tool for all your fabrication calculations such as All Fabrication Layouts Development, Flat Pattern Layouts Development, Dish ends Blank Diameter Calculations, Flange Hole Marking, Shell, and Dish Nozzle Orientation Marker, Shell, Dish end internal/external or limpet Pipe Coil Length Calculator.

Fabrication Calculator App is Very helpful for developing fabrication layout of all types of shapes generally used in fabrication. So, it helps to minimize fabrication time and Increased accuracy.

Unit setting option is available for mm/inches

In this App Following Fabrication Calculators are available :

Fabrication Layout calculator

1. Pipe Layout or Flat Pattern.
2. Truncated Pipe Layout or Flat Pattern.
3. Truncated Pipe at Both end layout or Flat Pattern.
4. Equal Diameters Pipe to Pipe Intersection or Pipe Branch connection Flat Pattern.
5. Unequal Diameters Pipe to Pipe Intersection or Pipe Branch Connection Flat Pattern.
6. Offset Centers Pipe to Pipe Intersection or Pipe Branch Connection Flat Pattern.
7. Cone to Pipe intersection at Perpendicular to Axis Flat Pattern.
8. Pipe to Cone Inter Section at Parallel to Axis Flat Pattern.
9. Truncated Pipe by Radius Flat Pattern.
10. Full Cone Layout Flat Pattern.

11. Truncated or Half Cone Layout Flat Pattern.
12. Multi Cone Layout Flat Pattern.
13. Eccentric Cone Layout Flat Pattern.
14. Multilevel eccentric cone layouts Flat Pattern.
15. Tori cone with Knuckle radius at large end Flat Pattern.
16. Tori cone with Knuckle radius at both ends Flat Pattern.
17. Rectangle to Round or Square to Round Transition layout Flat Pattern.
18. Round to Rectangle or Round to Square transition layout Flat Pattern.
19. Pyramid layout Flat Pattern.
20. Truncated Pyramid Layout Flat Pattern.
21. Sphere Petal Layouts Flat Pattern.
22. Dish End Petal Layouts Flat Pattern.
23. Miter Bend Layout Flat Pattern.
24. Screw Flight Layout Flat Pattern.

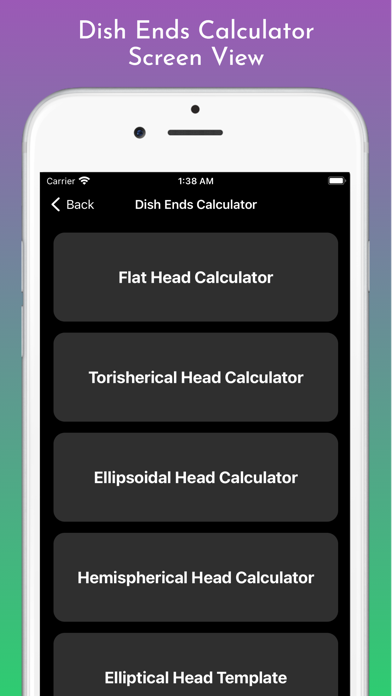

Dish End Blank Diameter Calculator

1. Flat Dish Blank Diameter Calculator
2. Tori spherical Dish end Blank Diameter Calculator
3. 2:1 Ellipsoidal Dish End Blank Diameter calculator
4. Hemispherical Dish End Blank Diameter Calculator
5. 2:1 Ellipsoidal Dish End Template Calculator

Nozzle Orientation Marker

1. Shell Nozzle Orientation Marker
2. Dish end Nozzle Orientation Marker

Flange Hole Calculator

1. Equip-spaced Hole Marking Calculator
2. Flange Hole at Particular angle Calculator
3. Equivalent No. of Hole Calculator

Pipe Coil Calculator

1. Internal / external Pipe Coil Length Calculator
2. Shell Limpet Coil Length Calculator
3. Dish End Limpet Coil Length Calculator

All the above types of Calculations are done in your mobile in one single tool for almost all your fabrication calculation needs.

So, In this application cone, shell, pipe, pipe branch connections, full cone, half cone, truncated cone, square to round, round to square, rectangular to round, Round to rectangular, pyramid, truncated pyramid, cone to pipe branch, spheres, dish ends, pipe coils, limpet coils, internal coil, external coil, half pipe jacket coil, miter bend, fabricated bend, cut bend, segment bend, flange, tube sheet, perforated plates, screw flights, nozzle orientations, shell nozzle, dish end nozzles, Tori spherical dish end, ellipsoidal dish ends, elliptical heads, hemispherical dish ends, flat dish ends, elliptical template markings, etc. shapes.

It is useful for those who are working in Pressure vessel fabrication, process equipment fabrication, welding, Piping, Insulation, Ducting, heavy Equipment fabrication, Storage tank, Agitators, Mechanical equipment, structures, industrial fabrication, heat exchangers, etc. This is a Unique tool for fabrication and No alternative is available to this calculator in the fabrication field.

This is the best tool for production engineers, fabrication engineers, planning engineers, costing and estimating engineers, project engineers, fabrication contractors, fabrication supervisors, fabrication fitters, fabrication workers.
