FEM BLOCKi - 3D Finite Element

FEM BLOCKi is the simple 3D Finite Element Analysis App.
Beginner engineers and students can learn fundamental operations for finite element analysis.

Feature [version 1.0]
- Hexa element with 8 nodes
- Simple beam shape
- Cantilever boundary condition
- Static analysis by applying force on the edge
- Displacement and Mises stress result
- Eigen frequency analysis (low 10 modes)
- Mode shape animation
- Up to 20,000 elements
- You can edit size of beam, meshing and force value.

In future version, various analysis will be added.

How to use?

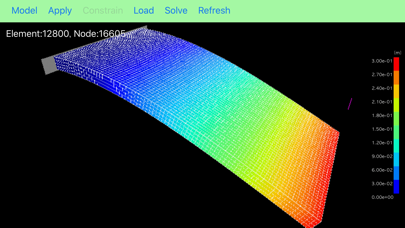

- Press [solve] button. Then, deformed shape will be shown.
- You can change the size of beam and meshing by
[Model] -> Rect1 -> Length
[Model] -> Rect1 -> Division
- You can change the force value by
[Load] -> Load1 -> value


*NOTES
- There is no guarantee of accuracy. Please carry out accuracy verification by yourself.
- The price of app will be changed without any notifications.
- The App contains Ads. (But no in-app purchases)
- Last validated OS is iOS 16.3.1

'Disclaimers'
We assume no responsibility or liability for any actions taken as a result of using this Application, or for errors or omissions in content.
