FTD NB-IoT/LTE-M

TEST AND ANALYSE NETWORK COVERAGE

This network tester provides accurate, real-time results on NB-IoT/LTE-M
networks performance by measuring parameters such as RSRP, RSRQ, SNR,
eDRX and transmission power.

The FTD connects via Bluetooth to a mobile application that provides an intuitive user interface from which you can easily set up a network test, view the analysis results and export them.


QUALIFYING AND VALIDATING CELLULAR NETWORK COVERAGE

· Scan all the networks present of the various operators within range of the tester, and make a rapid initial assessment of their performance.
· Test NB-IoT and/or LTE-M network coverage anywhere in the world, with any single or multi-operator nano-SIM card.
· Qualify network coverage at different locations and view network quality indicators for each measurement point.
· Automatically locate each measurement point.


FEATURES

· Simultaneous evaluation of NB-IoT and LTE-M networks.
· View, store and export network test results via the mobile application.
· 3 operating modes:

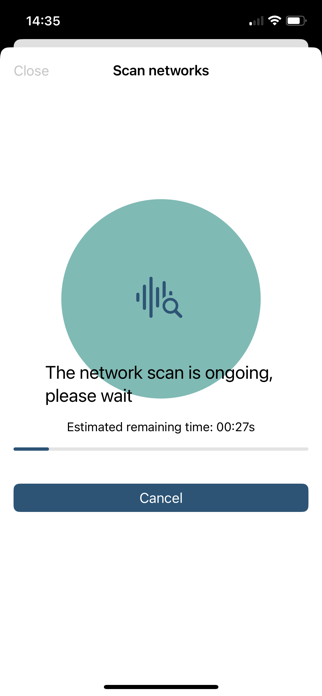

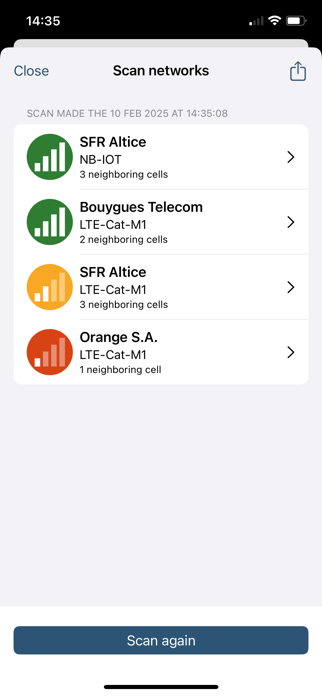

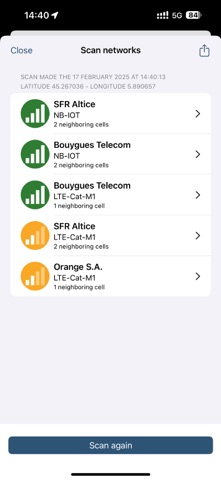

· network scan: scan all networks and assess connection quality,

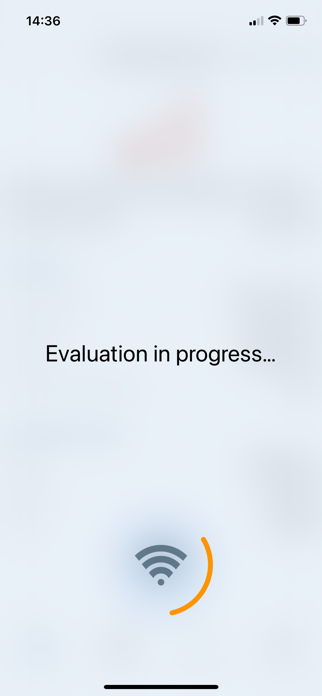

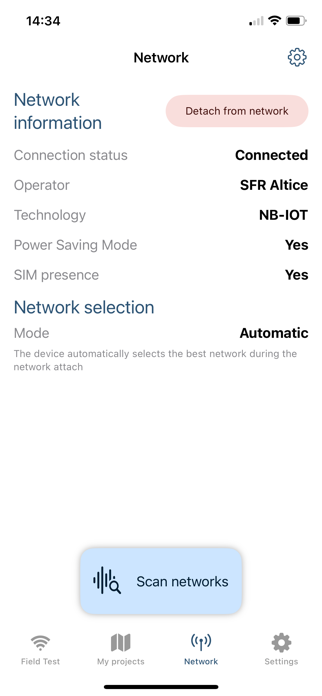

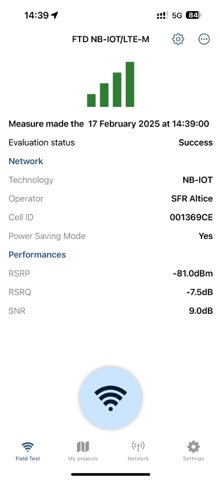

· network test: select an operator and analyse network quality in detail,

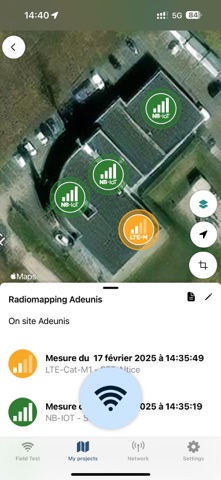

· radiomapping project: contextualise a network test.
