Kick Tolerance (Max Kick Vol)

The Kick Tolerance provides to drilling engineers, chemists, students and other professionals in the petroleum industry a productivity helpful tool in the drilling operations (well control) and well planning step of oil wells.

This application deals the concept:

- Kick Tolerance as Maximum Kick Volume applying the Boyle's Law and also with options for Gas Law (temperature and gas compressibility factor effects).
Note about the gas Z factor in this app: PV = nRTZ. Formulas by Hall and Yarborough (1973) correlation to estimate z-factor of natural gas.

The Kick Tolerance calculations as maximum kick volume can be applied on vertical and 3D directional wells.

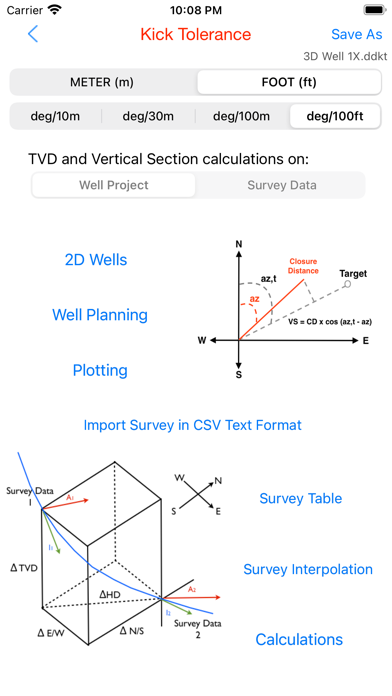

It provides a 3D well planning creation tool like our app "Directional Drilling".

The well planning and survey stations can also be imported from CSV text files, for example:
"MD","INC","AZI","TVD","N/S","E/W"
"1000.0","0.0","0.0","1000.0","0.0","0.0"
"1100.0","3.0","10.0"
"1200.0","6.0","15.0"
...
The values can be "quoted" or unquoted and separated by:
- Comma: 1.00,2.00,3.00
- Semicolon: 1.00;2.00;3.00 or 1,00;2,00;3,00
- Tab: 1.00 2.00 3.00 (TSV file)
- Space: 1.00 2.00 3.00

- Dark Mode (iOS 13 or greater)

Please you can contribute with suggestions for improvements, correcting the English translation, reporting bugs and sharing it with your friends.

DISCLAIMER:
These tools & materials are provided 'as is' without warranties of any kind, express or implied.
Please verify the tools provided by this application by yourself before you use them. Ensure you understand the impact of using these tools.
Any use you choose to make of these tools & materials is undertaken by you entirely at you own risk.

Thanks
