Loopworks Measure

Loopworks™ is a unique suite of online and App-based tools and resources designed by Ampetronic to enable its customers to understand, specify and design Hearing Loop systems.

IMPORTANT
Designed for iOS 14.0 and up, the Loopworks Measure App will not function without the Loopworks Measure Receiver R1 hardware, which can be purchased from www.ampetronic.com. The app supports use of the R1 with Apple lightning to 3.5mm adapters but does not support USB-C devices.

Loopworks Measure combines an iOS phone or tablet App with a self-calibrating Receiver that together become the most accurate, dedicated field strength meter (FSM) currently available. The App and Receiver are supported by the Loopworks online database and reporting tools.

The Loopworks system helps those with even the most rudimentary training to measure the magnetic field produced by a Hearing Loop system (otherwise known as an Induction Loop) to either assess whether a system is functional or to measure it against the IEC 60118-4 Standard for Hearing Loop performance.

Once users have created and signed in to their Loopworks account, the App can synchronise collected data with the Loopworks online portal, making it possible for users to view, analyse and share their results online. Users can also create test and certification reports. When using the online Loopworks environment there is also support available from our loop experts via telephone or Live Chat.

Loopworks Measure iOS App Features (requires Receiver hardware):

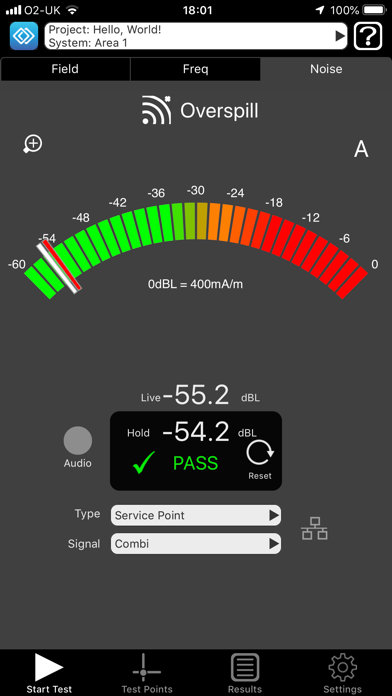

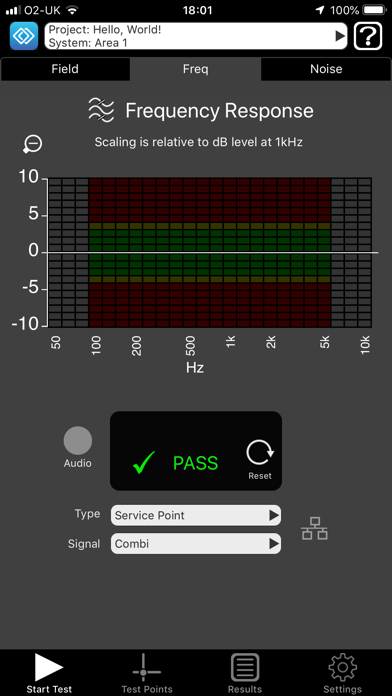

• Meter mode; Field Strength, Background Noise & Frequency Response
• Digital metering displays with resolution of +/- 0.5 dB
• Contextual Help Menu
• Automatically synchronises data with Loopworks online database when signed in and a wireless connection is/becomes available
• Record audio samples function (when signed in to a Loopworks Account)
• Walk-through Guides; Site Assessment, Quick Test, Commissioning, Commissioning a Service Point

Loopworks Measure Online Tools Features

• Analyse data captured using the Measure iOS App
• View your own work, or that of a colleague working at the same company
• Set up systems and test points prior to going to site (synchronise with the App prior to attending site in the event that no network connection is available).
• Playback back audio and get support and analysis from Ampetronic
• Generate technical reports (automatically from the App or by manual entry)
• Generate commissioning reports and conformity to Standard certificates
• Live Chat and live telephone support from Ampetronic or overseas partner
