Miter Bend Layout Calc

Miter Bend Layout Calc is designed to generate flat pattern layout markings for Miter Bends, Segment Bends, Cut Bends, and Fabricated Bends used in fabrication, piping, ducting, and insulation industries.
It’s a must-have tool for professionals working in piping fabrication, ducting, and aluminum insulation fields.

All input dimensions are in millimeters (mm), so please enter your measurements accordingly to get accurate layout and marking results.

App Highlights:
Generate flat pattern layouts of Miter Bends and Fabricated Bends.
Works for 12, 24, 36, 48, 72, and 96 divisions.
Calculates and displays the Miter Angle on the result screen.
Calculates the required cutting plate size to plan your raw materials efficiently.
Displays the layout for both end parts and the middle part for better understanding and accurate marking.

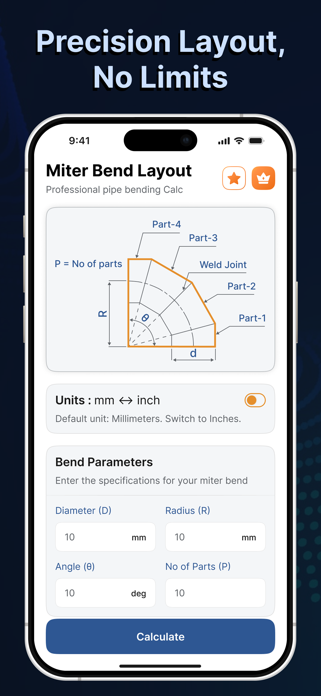

Input parameters include Diameter, Bend Radius, Bend Parts, and Angle of Turn.
Choose layout options based on desired accuracy: 12, 24, or 36 lines.
Option to generate marking layout for flat plate or direct pipe by selecting mean or outer diameter.
Includes instant result sharing and easy visualization.

Please note: Cutting allowances are not included in this app, so make sure to add them as per your fabrication requirements.

Best For:
Cut Bends, Segment Bends, Fabricated Bends, and Miter Bends.
Layout marking and development.
Process equipment and raw plate size planning.
Fabrication, ducting, insulation, and sheet metal industries.

With Miter Bend Layout Calc, you can simplify your layout development process, improve precision, and save valuable time in fabrication work.
