MyPixsys

MyPixsys is the new companion app designed to simplify and optimize your daily interaction with our products.
Thanks to the contactless NFC connection technology embedded in our devices, it is now possible to manage our devices with your iphone (iphone 7 or higher required)

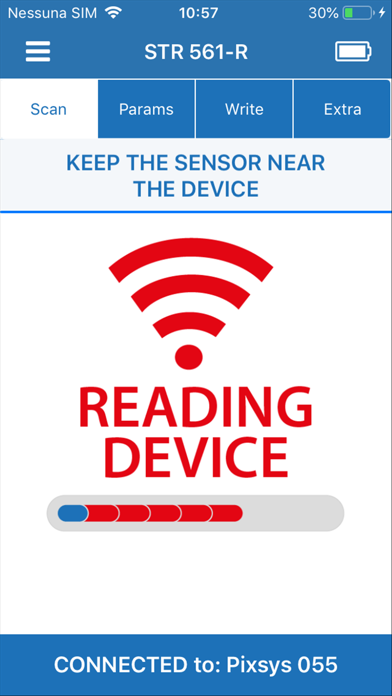

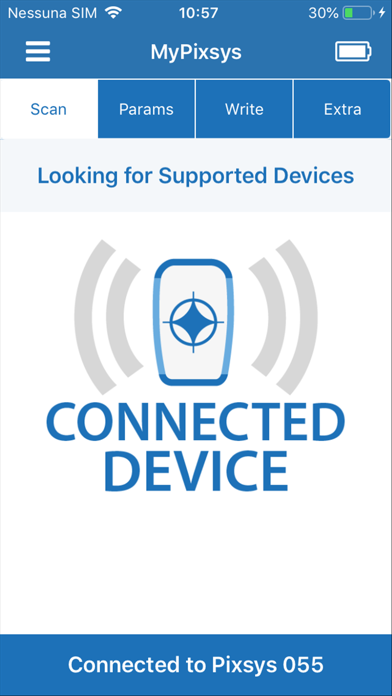

MyPixsys will automatically identify the model (as long as it's listed in the supported models section), read the current configuration and display it in a handy collapsable group list.

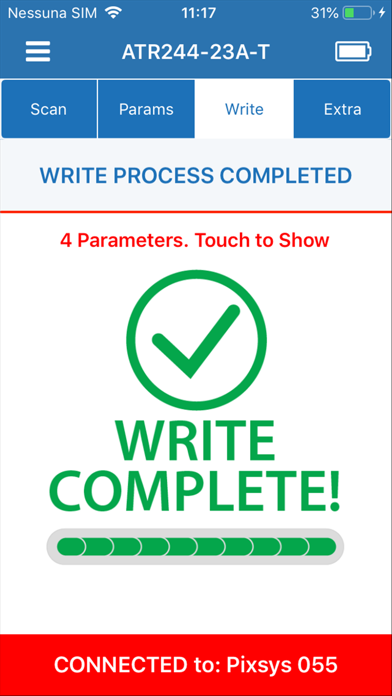

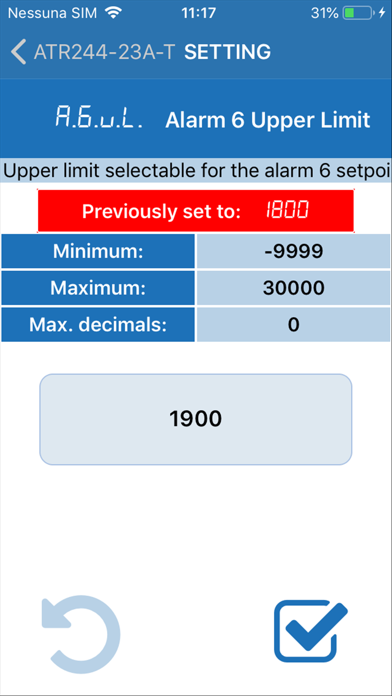

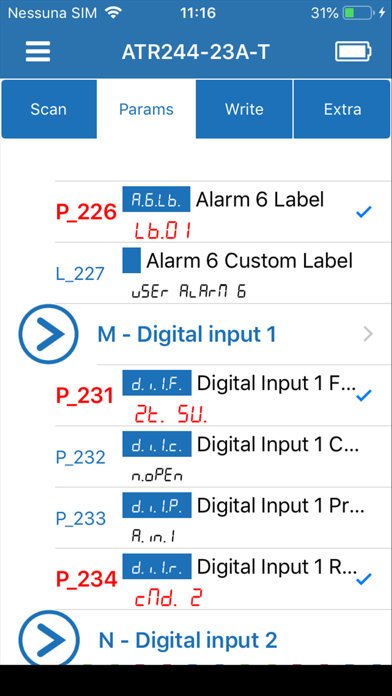

Each group can be expanded in a list and contains the values that regulate the functioning of your Pixsys instrument. Touch any row to edit the corresponding parameter, and once done, write the new configuration your device.

Features:
-Easy and intuitive interface in 4 tabs
-Automatic product identification
-Faulty memory detection and correction
-Reads the whole configuration in just a few seconds
-Set parameters and change values on the fly
-User input data checking and correction
-Save configuration backups in your phone, or share them via email, bluetooth, WhatsApp, Drive and many other apps.
-Load and write user-created or stock configurations
-Clone one device in another with just a touch
-Supports the optional Pixsys bluetooth RFID Programmer (product code 2000.35.099) for retrocompatibility with older devices

Supported Products:

2000.35.10
2000.35.15
2000.35.16
2000.35.17
2000.35.20
STR551-12ABC-T-R
STR561-12ABC-T128-R
STR571-1ABC-T128-R
STR581-1ABC-T128R
DST400 line
DST100/DST800
ATR244-12
ATR244-12T
ATR244-23A-T
ATR244-23BC-T
ATR244-13ABC
DRR244-13ABC-T
DRR224-12ABC
ATR224-12ABC
ATR144-ABC
ATR144-AD
ATR144-ABC-T
ATR144-AD-T
MCM260X-xAD series
DRR460-12A-T128
ATR444-13ABC
ATR444-14ABC-T
ATR444-15ABC
ATR444-22ABC
ATR444-24ABC-T
ATR424-12ABC
ATR114-AD
ATR114-ABC
ATR124-AD
ATR124-ABC
ATR124-AD-T
ATR124-ABC-T
DRR224-23ABC
ATR464-15ABC
ATR464-24ABC-T
ATR264-12ABC-T
ATR264-13ABC
