Olypsys Measure

Measure and identify O-rings, gaskets, circlips and washers with your phone.

Put the part flat on an Olypsys calibration grid and take a photo. You get its dimensions in seconds, and the app tells you which catalogue parts fit.

WHAT IT MEASURES
Free: O-rings and backup rings.
Pro: worn and compression-set O-rings, FEP O-rings, X-rings, square rings, V-rings, O-ring cord, gaskets, circlips and washers.
Enterprise: enhanced-accuracy O-ring measurement and remote capture.

STANDARDS MATCHING
Measured parts are compared against catalogue sizes from standards including AS568, BS 4518, GB/T 3452.1, JIS B 2401, DIN 471, DIN 472, DIN 6799, ASME B16.21 and EN 1514-1. You see ranked candidates with a confidence score, part number and manufacturer.

CAD EXPORT (PRO)

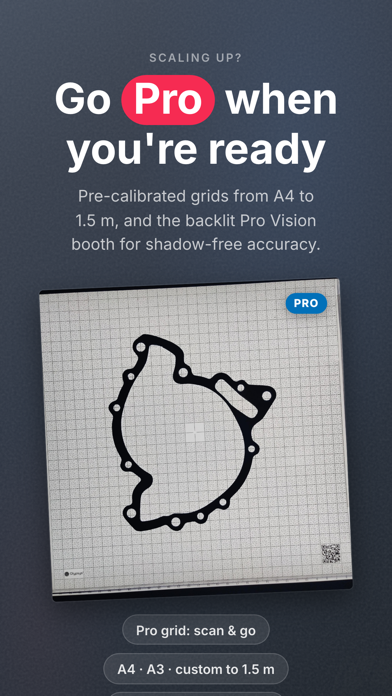

Download any traced gasket, circlip or washer as DXF, SVG or .o2d for cutting or quoting.

WHAT PEOPLE USE IT FOR
Goods-inward inspection. Identifying worn or unmarked parts for replacement. Quality checks before assembly. Go/No-go checking against your own tolerances or a standard size.

Measurements save with a project reference, location and application. Free accounts keep three days of history. Pro keeps all of it.

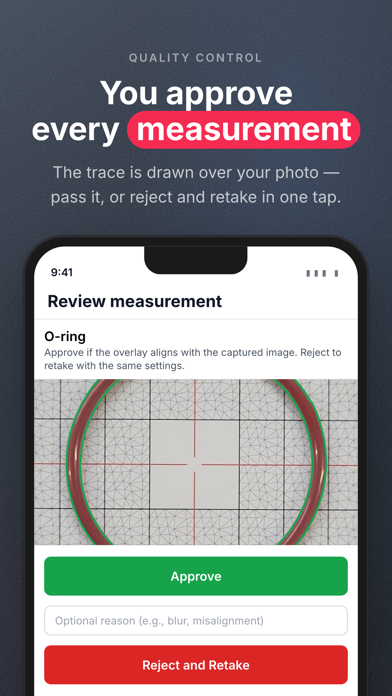

The computer vision corrects for shadows, camera tilt and lens distortion, so results repeat between photos.

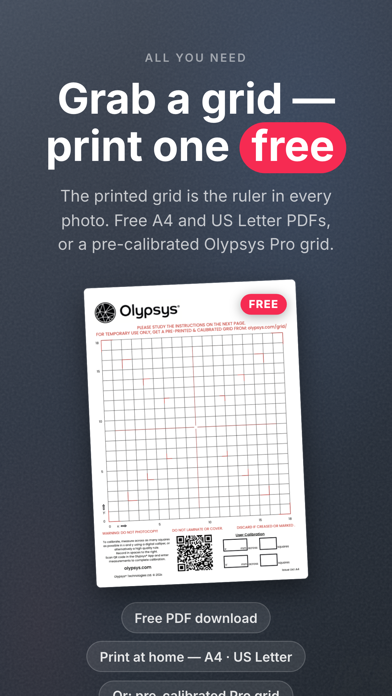

You need an Olypsys calibration grid. Print one, or buy a durable mat.

Pro and Enterprise are subscriptions. Enterprise is sold through Olypsys and its distributors: contact sales@olypsys.com.
