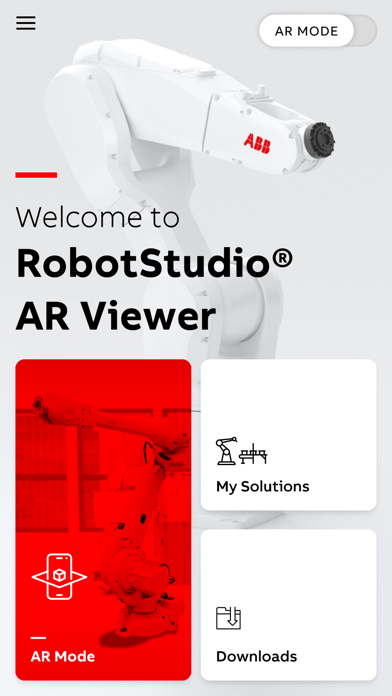

RobotStudio® AR Viewer

RobotStudio® AR Viewer is an advanced Augmented Reality application that lets you discover and visualize ABB robots and robotic solutions - either in real environment or in 3D. Tailored for users aiming to expedite design and commissioning processes, it offers an exact, full-scale replica of your RobotStudio® simulations, with precise cycle times and movements.

Whether you are engaged in replacement, brownfield, or greenfield projects, RobotStudio® AR Viewer enables faster and more accurate prototyping. Utilize the built-in scanning feature (available on supported devices) to capture your real-world environment, then add markups, measurements, and virtual robots to the scan. Upload your scan directly to a RobotStudio® Cloud project to continue refining your simulation.

RobotStudio® AR Viewer − an indispensable tool for robotics professionals.

Key Features
- Extensive Robot Library: Quickly access over 30 pre-engineered robotic solutions and more than 40 ABB robot models.
- Real-World Visualization: Place and animate complete robotic cells at full scale on your shop floor.
- AR & 3D Modes: Switch between Augmented Reality and 3D views for maximum flexibility.
- Multi-Robot Visualization: Interact with multiple robots simultaneously to test complex workflows.
- Joint Jog Control: Test reach, adjust robot joints, and prevent collisions in real time.
- Cycle Time Clock & Scaling: View accurate cycle times, and scale models from 10% to 200% to suit your workspace.
- Safety Zones: Instantly visualize safety zones and minimize operational risks.
- Import Your Own Simulations: Easily bring in your RobotStudio® files by utilizing RobotStudio® Cloud for precise AR or 3D visualization.
- Scanning & Environment Mapping (on supported devices): Capture your existing setup, generate a file compatible with RobotStudio®, and annotate it with markups and measurements.
- Local Project Management: Store scans, photos, and videos in separate projects for easy reference and sharing.
