RRS EQ173

EQ173 AUv3 plug-in — comes as time-limited Demo-version for you to try. It gives you 5 minutes of Free play time. (You can reload the EQ173 AUv3 plug-in as many times as you want, thereby you get the Demo period again and again.) Unlimited version of EQ173 AUv3 plug-in comes as In-App Purchase.

Red Rock Sound EQ173 is based on introduced in 1970, this hallowed class-A, transistor mic/line amp with EQ epitomizes the beautiful sound, with unparalleled clarity, sheen and bite.

Features:

• Standalone and AUv3 plug-in;
• Modeled vintage EQ;
• Stereo (Mono), Mid or Side EQ modes;
• Undo/Redo;
• A/B comparison;
• 2x/4x/8x Upsampling;
• Macro controllers;
• Built-in Gain Match;
• Scalable GUI.

PREAMP SECTION:

• Line Gain — Line drive is increased as the knob is rotated counter-clockwise. Range: -20 to +10;
• Mic Gain — To increase the mic drive, rotate the knob clockwise. Range: -20 to -80. PreAmp will not increase gain, just harmonic distortion. The distortion is mild and adds some coloration.

EQ SECTION:

• High Band — The High Shelf knob offers approximately ±15 dB of smooth fixed frequency shelving equalization at 12 kHz. Rotate the control clockwise to add the famous high-end sheen, or counter-clockwise to reduce the treble response;
• Midrange Band— The midrange band is controlled by two knobs, delivering smooth semi-parametric midrange equalization. The right knob controls the band gain, and the left knob selects the band frequency or band disable. The response for this band has a dependence on the bandwidth as the gain is adjusted. At higher center frequencies, the Q goes up for a more focused peak;
• Low Band — The low band delivers smooth low frequency shelving equalization, controlled by two knobs. The right knob controls the band gain, and the left knob selects the shelf frequency or band disable. The available range is approximately ±15 dB. The band gain is zero when the knob position indicator is pointing straight down;
• Low Cut — This knob specifies the fixed frequency of the low cut (high pass) filter. This filter has an 18 dB per octave slope. The available frequencies are 50 Hz, 80 Hz, 160 Hz, 300 Hz and OFF.

MASTER SECTION:

• Input — Input adjusts the signal level at the input of the plug-in without effecting the sonic character of the signal. The available range is ±24 dB;
• Phase — The PHASE button inverts the polarity of the signal. When the switch is engaged, the phase is inverted. Leave the switch in the disengaged for normal phase;
• EQ — The equalizer is engaged when the EQ switch is engaged. To disable the EQ, disengage the switch. In the EQ173 the audio is still colored even when the EQ switch is disengaged and the EQ settings are in their «flat» positions. This is due to the fact that the signal is still passing through PreAmp circuitry;
• Output — Output adjusts the signal level at the output of the plug-in without effecting the sonic character of the signal. The available range is ±24 dB.

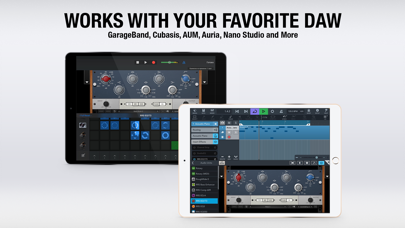

To use EQ173 as a plug-in, you need an AUv3-compatible host app like GarageBand, Auria, AUM, Cubasis and more — EQ173 will appear in the list of Audio Unit extensions for effect plug-ins in the host app.
