Shaft Alignment Calculator

During shaft alignment of rotating machinery, this app calculates the required shim amounts for the front and rear feet, as well as the horizontal adjustment direction and distance, based on 4-point Rim and Face dial indicator readings.
Furthermore, if the alignment can be brought within your custom "Tolerance" limits by adjusting only one set of feet (front or rear), the app automatically simulates and displays the "Optimal Shim Amount," "Adjustment Range," and "Predicted Residual (Remaining Misalignment)."



--- Key Features ---

[NEW] Reverse Indicator Method Support
Fully supports the Rim-Rim reading method on both sides of the coupling. Includes a dedicated input screen with automatic compensation for Bar Sag values.

[NEW] Single-Foot Adjustment Simulation
If the alignment can be fixed by moving only the front or rear feet, it automatically suggests the optimal shim amount, acceptable adjustment range, and the resulting residual misalignment.

[NEW] Custom Tolerance Settings
Freely set and modify Rim and Face tolerance values to match your specific site standards.

• Memory Function
Input values are retained even if you close the app halfway through.

• Calculation History
Saves up to 30 recent calculation results, automatically overwriting the oldest entries.

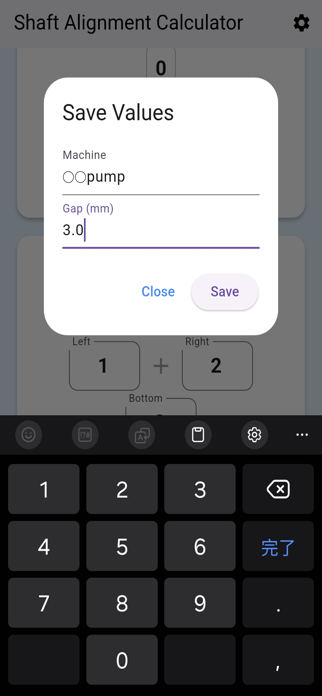

• Save Measurement Records
Save the final, in-tolerance Rim and Face readings along with the Machine Name and Gap distance (up to 30 records).

• Face (+/-) Toggle
Press the "+=" button to easily switch between "+ = Closed" and "+ = Open" for Face gauge readings.

• Offset Function
Supports calculations with thermal growth offset targets.

• Average Mode
Calculates based on the average of two separate measurements.
(*Not available in Reverse Indicator mode.*)

• Swap Gauge Setup
Supports setups where readings are taken from the Driven machine to the Driver (Motor).
(*Not available in Reverse Indicator mode.*)

• Dark Mode
Ensures optimal visibility in various environments, whether indoors or outdoors.



--- App Highlights ---

• Lightweight operation without complex animations, preventing unnecessary battery and memory drain.

• Fully standalone application; works perfectly in underground facilities or deep inside plants without an internet connection.



--- Specifications ---

• "Left/Right" in the app refers to the direction when looking from the motor toward the driven machine.

• Enter Coupling Diameter (or Gauge Span for Reverse mode) and Front/Rear distances in mm.

• Enter Rim, Face, and Bar Sag values in hundredths of a millimeter as whole numbers (e.g., enter 15 for 0.15 mm).

• For inch/mil (thou) calculations, enter Coupling Diameter and distances in inches. Enter Rim, Face, and Bar Sag values in mils/thou as whole numbers (e.g., enter 5 for 5 mils).



--- How to Use ---

1. Enter the machine dimensions.

2. Enter the 4-point measurement readings.

3. Check the "+=" button setting (*Rim-Face method only*).

4. Tap the "Calculate" button.



--- How to Use Features ---

• Reverse Indicator Method
Turn this on in "Settings" to switch to the dedicated layout. Enter the distances using the stationary indicator position as the starting point (0). Input fields for Bar Sag values will also be displayed.

• Tolerance Settings and Single-Foot Adjustment
Enter your Rim and Face tolerances in "Settings". After calculating, if a single-foot adjustment falls within this tolerance, a suggestion (Front/Rear foot only) will appear along with the adjustment amount, range, and residual.
(*If the tolerance is set to 0, single-foot adjustment suggestions will not be displayed.*)

• Offset Function
Enabling this displays input fields. Enter values in the desired offset direction, and they will be reflected in the calculation.

• Average Mode
Enabling this adds extra Rim/Face input fields. The app will calculate based on the average of two measurements.

• Swap Gauge Setup
Turn this ON if your dial indicators are set up to read from the Driven machine to the Motor.


--
