Singular: Circuit Simulator

Singular is a professional-grade analog & logic circuit simulator designed for your iPhone and iPad. Build, simulate, and analyze electronic circuits with an intuitive drag-and-drop editor and a powerful real-time simulation engine — no internet required.

Whether you're an electrical engineering student studying for exams, a maker prototyping your next project, or a professional verifying a design, Singular gives you a complete electronics workbench in your pocket.

POWERFUL SIMULATION ENGINE
• Modified Nodal Analysis (MNA) with TR-BDF2 adaptive solver
• Real-time transient, DC, and AC analysis
• Frequency-aware adaptive timestep — accurate results at any speed
• Newton-Raphson nonlinear convergence for semiconductors
• Hot-swap: modify your circuit while simulation is running

40+ ELECTRONIC COMPONENTS

Passive — Resistor, Capacitor, Inductor, Potentiometer
Sources — DC Voltage, AC Voltage, Pulse Generator
Diodes — Standard Diode, Ideal Diode, LED
Transistors — NPN, PNP, Darlington PNP, N-MOSFET, P-MOSFET
Integrated Circuits — NE555 Timer, Operational Amplifier (Op-Amp)
Logic Gates — AND, OR, NAND, NOR, XOR, XNOR, Inverter, Buffer
Flip-Flops — D, JK, T Flip-Flop, SR Latch
Measurement — Voltmeter, Ammeter
Power Rails — Ground, VCC, VDD, VSS, VEE, ±3.3V, ±5V

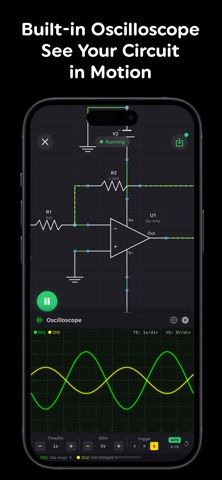

REAL-TIME OSCILLOSCOPE
• Multi-trace display with color-coded signals
• Adjustable time base and voltage scale
• Pinch-to-zoom and pan gestures
• 60 fps rendering — smooth and responsive

INTUITIVE CIRCUIT EDITOR
• Drag-and-drop component placement with grid snapping
• Draw wires by tapping terminals — automatic routing
• Rotate, flip, and mirror components freely
• Multi-select, move, and organize your design
• Full undo/redo history (up to 100 steps)
• Pinch zoom (0.1x–5x) and two-finger pan

PROFESSIONAL TOOLS
• Design Explorer with automatic reference designators (R1, C2, U3…)
• Standard value picker — E12, E24, E96 resistor series and standard capacitor values
• Built-in expression evaluator — type "10k*2.2" and get the result instantly
• Real-time voltage, current, and power readouts on every component
• Net name visualization for complex designs

LEARN & EXPLORE
• Built-in example circuits: Voltage Divider, Current Divider, Inverting Amplifier, 555 Timer Demo
• Resource Center with reference articles
• Detailed simulation error guide — understand what went wrong and why
• Save examples to your workspace and modify them freely

SAVE, EXPORT & SHARE
• Save unlimited circuits to your workspace
• Export circuits as portable .circuit files with embedded thumbnails
• Import circuits from other users or devices
• Add names, descriptions, and metadata to every project

DESIGNED FOR iPAD & iPHONE
• Built 100% with SwiftUI for a native Apple experience
• Optimized for both touch and Apple Pencil
• Works entirely offline — your data stays on your device

Singular is the circuit simulator that students wish they had during lectures, that makers reach for at the workbench, and that engineers trust for quick verification. Download it and start building.
