Solar Hybrid PCU

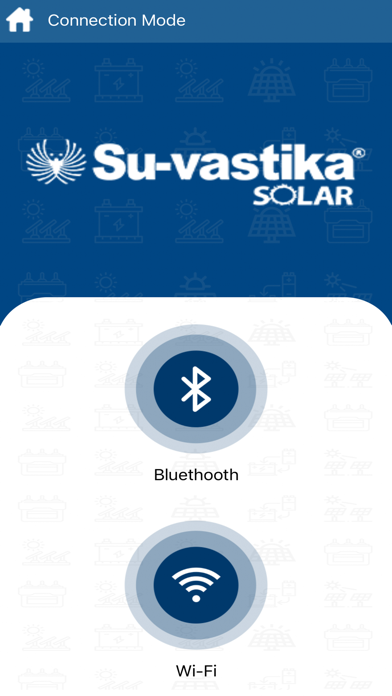

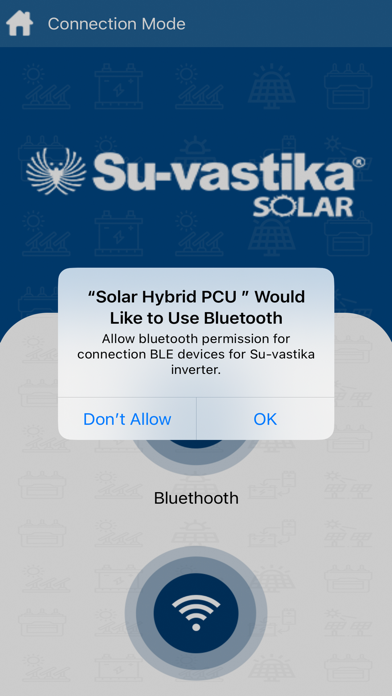

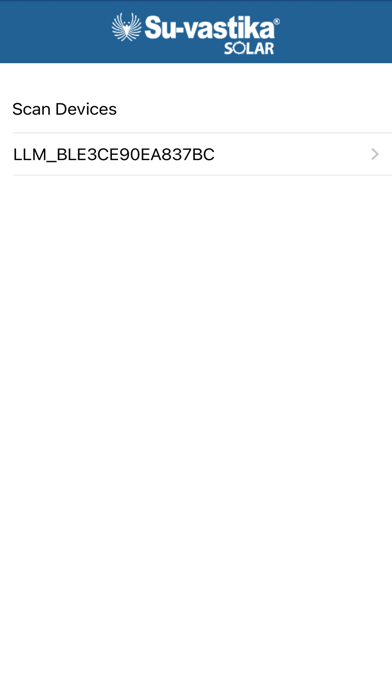

1. Remote Monitoring: With a Bluetooth-enabled off-grid solar inverter/solar Hybrid PCU, you can remotely monitor the performance of your solar power system. You can access real-time data on your smartphone or tablet and keep track of your system’s energy production and usage.

2. Easy Installation: Off-grid solar inverters/PCU with Bluetooth connectivity are easy to install, and you don’t need any specialised knowledge or tools. The installation process is straightforward and can be completed in seconds.

3. Increased Efficiency: With Bluetooth-enabled inverters/PCU, you can optimise the performance of your solar power system. You can adjust the settings of your solar Hybrid PCU to maximise energy production and reduce energy waste.

4. Cost Savings: Off-grid solar inverters with Bluetooth connectivity can help you save money on energy bills. You can monitor your energy usage and adjust your consumption patterns to reduce energy costs.

5. Environmentally Friendly: Off-grid solar inverters with Bluetooth connectivity are environmentally friendly. They use renewable energy sources to power your home, reducing your carbon footprint and contributing to a cleaner planet.

6. Improved Reliability: With a Bluetooth-enabled off-grid solar inverter/Solar Hybrid PCU, you can enjoy improved reliability and stability. These inverters are designed to withstand harsh weather conditions and provide an uninterrupted power supply to your home.

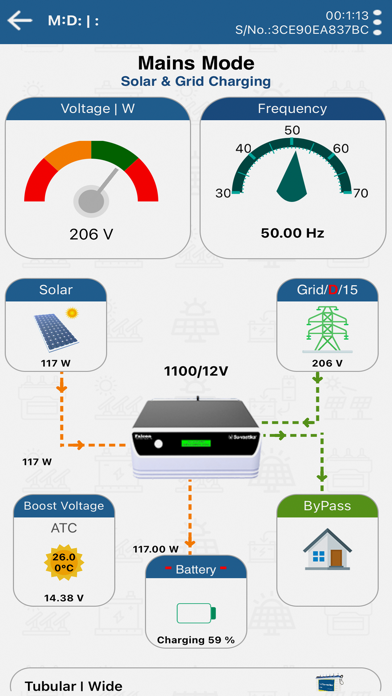

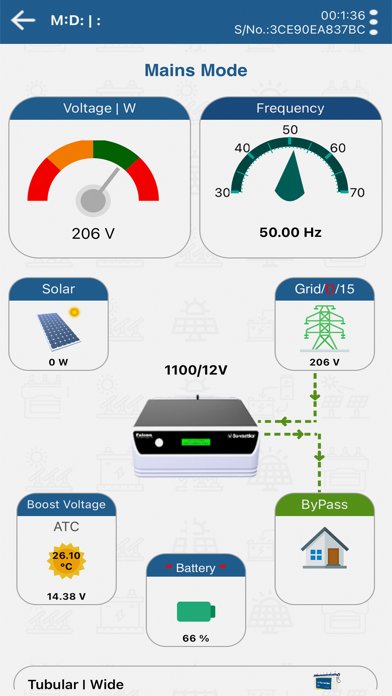

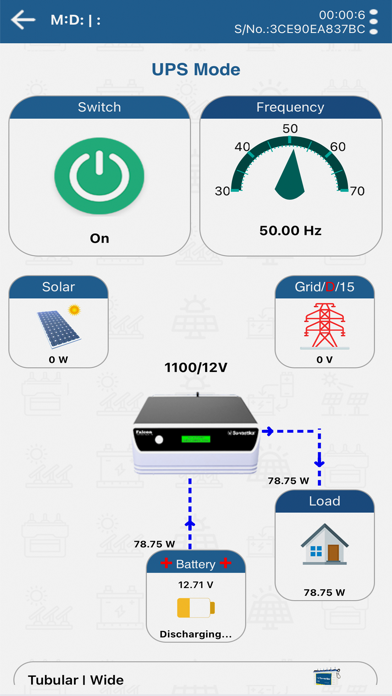

7. In this app, you can monitor the Mains Voltage and Frequency, and it cuts off the Mains in case of High and Low voltage in the grid and switch on the UPS mode, which you can see on the app very clearly.
8. This app has so many settings to choose from, and the grounds are done in the Hybrid PCU via two-way communication as we do the scenes in the app; it has been taken by the solar Hybrid UPS, and change the settings inside the solar hybrid PCU so we can do settings for Mains Grid Wide mode and Narrow mode where the voltage range is changed to run specialised loads like computers and printers.
There is a setting for the selection of battery which can give you an option of selecting LeadAcid tubular, SMF and Lithium Ion battery which can be chosen through the app and solar hybrid PCU stores those settings through the app only.

The other essential settings are Grid Charging current, and these settings can be changed from 2.5Amp to 15 Amp, which helps the user to reduce the electricity bill or use a small battery in the Solar PCU.
Another setting is Grid Enable and Disable, which is very important for a user to save the electricity bill. By selecting this feature through the settings, one can change the solar Hybrid PCU to Completely shut down charging from the grid, which saves the electricity bill.

Also, there is a setting for reserve mode for the battery where you can set the DOD of the battery to increase the battery life. The same feature can be used in an emergency to get more backup time if the Hybrid UPS is stopped and there is no grid, and you want to use it for some more time by just changing the DOD in the settings.
Another critical feature in settings is to set the solar priority battery voltage setting, which can help you save the electricity bill as the grid charging will not take place till the battery voltage reaches the settable voltage.
The app has alert tones for every alert like overload, short circuit, low battery and high temperature. It has different mobile techniques, making it attractive and unique compared to anyone worldwide. You can set these tones off and on through the app.

This app has the unique feature of ATC monitoring while charging. The Automatic Temperature compensation works on the app as the ambient temperature increases or decreases. The boost voltage is changing on the screen, which shows how the ATC feature is helping the user save on electricity bills and increase the backup time in the winter.
