TeraTrak R1

Full Bore Plans, Now on Driller’s Remote Display

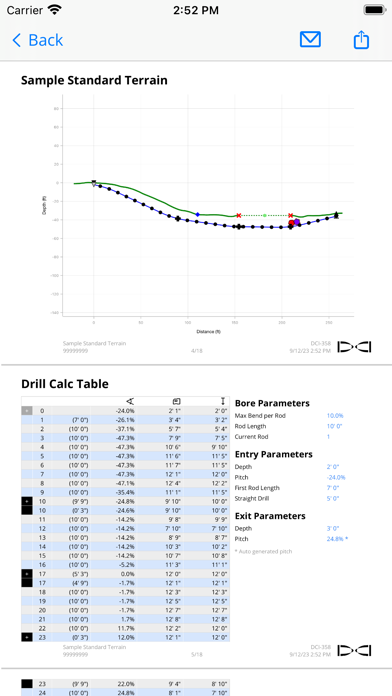

The TeraTrak ® app and the DCI TeraTrak ® R1 work together to give HDD drillers detailed, achievable bore plans.

The latest release includes a revolutionary update: bore plans from the TeraTrak R1 can now be transferred to DCI’s Aurora remote display, giving drill rig operators a detailed view of the underground that includes their bore plan, marked utilities and clearances, and a three-rod path projection so they can anticipate steering changes.

As we like to say, let the TeraTrak R1 app do the math for you.

Features at a Glance
- Full bore plans that are transferrable to the Aurora remote display
- Easily adjust bore plans with the new Nudge Tool to avoid costly infrastructure strikes.
- Measure and map precise elevations, distances, infrastructure, and waypoints along your drill path
- Use in areas where GPS does not work

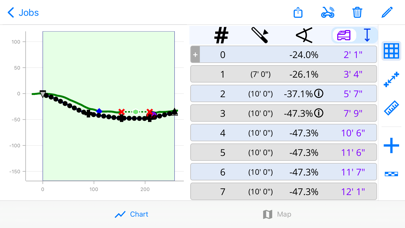

- Determine rig placement and rod-by-rod entry plan
- Export data for use in bore planners


Visualize Your Job Site

As you walk the DCI TeraTrak ® R1 along the projected bore path, TeraTrak ® app builds a terrain map in real-time, allowing you to add utilities, waypoints, and pins with notes, or other features your crew needs to know about.

Tap and drag to any point on your mapped terrain to show the precise elevation changes. Easily view both terrain and horizontal distances. For a quick way to view average pitch along the bore, TeraTrak ® will calculate the pitch between two waypoints.
