VibraTestPro-VibrationAnalyzer

VibraTestPro is a vibration analysis tool on iPhone/iPad. It reads vibration signal from Motionics single channel accelerometer. VibraTestPro features ISO10816 based vibration meter, FFT spectrum viewer, vibration signal recorder and route base vibration data manager.

NOTE: this App needs Motionics single channel accelerometer to operate. Please contact Motionics for hardware information.

VibraTestPro now supports VibeSense wireless accelerometer.

VibraTestPro now supports torsional vibration analysis on iPad.

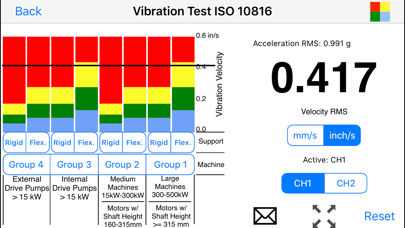

ISO10816 Based Vibration Meter
• Severity test based on ISO10816-3 standard or custom thresholds
• Interactive ISO 10816 vibration severity table

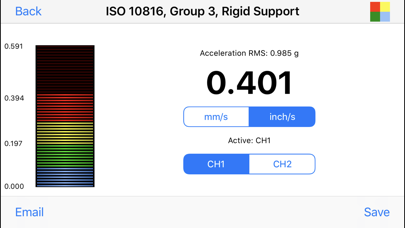

• Enlarged severity bar with 4 color zones for better view
• Velocity and acceleration RMS
• Metric and Imperial units option
• Machine type and support type selections
• RMS data save to route base data manager

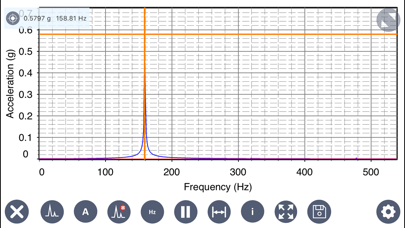

FFT Spectrum Viewer

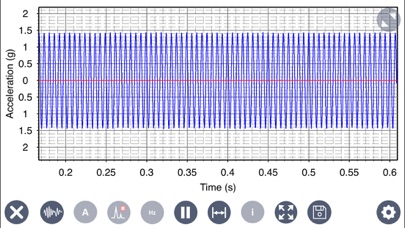

• Waveform and FFT Spectrum
• Pinch and pan to zoom and move spectrum
• Auto peak marker and manual marker
• Acceleration signal and velocity signal
• Metric and Imperial units option
• Peak information
• Overall RMS
• Dynamic X and Y grids
• Distance cursor

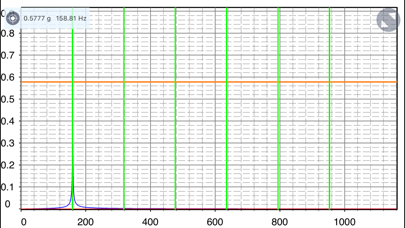

• Harmonic cursor
• Sideband cursor

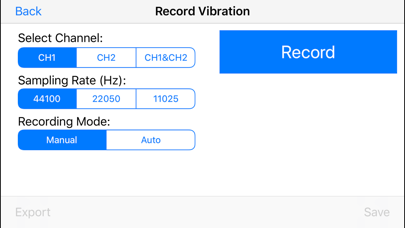

Vibration Data Recorder
• Vibration raw signal recording
• User defined recording sampling rate
• Recording manual or auto stop
• Recorded data exporting in CSV file or WAV file via AirDrop, Email, Dropbox
• Recorded data save to route base data manager

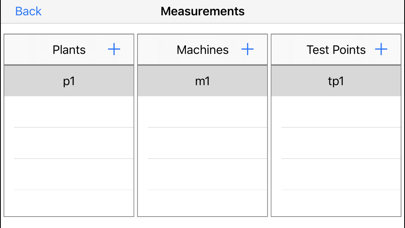

Route Base Data Manager
• Plant-Machine-Measurement Point-Measurement Record structure
• Save image to record
• Add note to record
• View RMS value if record is saved from vibration meter
• Export vibration raw data if record is saved from data recorder
• Offline spectrum
• Export FFT value
