Wire Size & Ampacity Calc

Size conductors the way the code book does — without flipping pages.

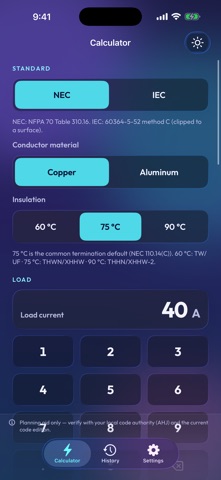

Pick NEC or IEC, enter the load, set the real conditions, and read the minimum conductor size on one screen.

WHAT IT DOES
- NEC (NFPA 70) Table 310.16 ampacities: copper and aluminum, 60/75/90 °C columns, 14 AWG to 500 kcmil
- IEC 60364-5-52 method C ampacities: copper, PVC or XLPE, 1.5 to 300 mm²

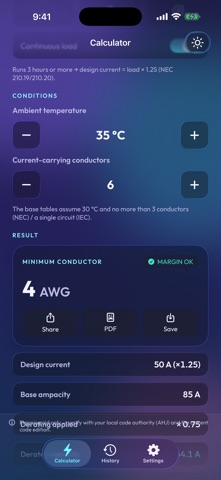

- Ambient-temperature correction and grouping adjustment applied automatically
- 125 % continuous-load design current
- Suggested breaker from the standard ladder, small-conductor caps included
- Pro: full derating breakdown, conduit-fill summary (NEC Ch. 9 Table 1), voltage-drop cross-check, history and one-page PDF export

BUILT FOR THE FIELD
Big glove-friendly keys, an Outdoor Bright theme for direct sunlight, and everything works offline.

PRIVACY
Everything stays on your phone. No account, no ads, no tracking.

A planning aid, not a substitute for the code — always confirm results with your local code authority and the current edition.

PRO UNLOCKS: both NEC and IEC standards, full derating detail, conduit fill, voltage-drop checks, history and PDF export. Available as an auto-renewable subscription (monthly or yearly) or a one-time Lifetime purchase.

———
