A2

A2 is an application dedicated to the measurement of land area, perimeter and distance. The moderate grounds can be situated all over the world.
A2 can measure and display the surface and the perimeter of several land on the same plan with intermediate distances.The measurement can be displayed in feet, Inch, Yard or Feet.
The application displays the French land registry superimposed on the map. Thus, the measurement accuracy of the plots is greatly improved (useful for a geometrician).
A2 can save plans, edit them and export them via e-mail with the format "KML" (for use with software like Google Earth, Google Maps, Google Mobile, World Wind, Sketchup ...) and "DXF" (AutoCAD).
A2 can import KML file.

A2 has three ways of functioning:

- GPS: the user is present on the ground to be measured. He then confirms a succession of points describing at best the ground thanks to the position supplied by the GPS.

- Manual: the user seizes points manually without moving by finding a way on the map.

- Mixed: the user is on the ground and seizes points via the GPS, then can add it manually (for difficult access for example).

The calculation of the surface is effected and displayed at each input. The result can be stated in m2 square feet, square yard, are, ha.

Flexibility of A2.

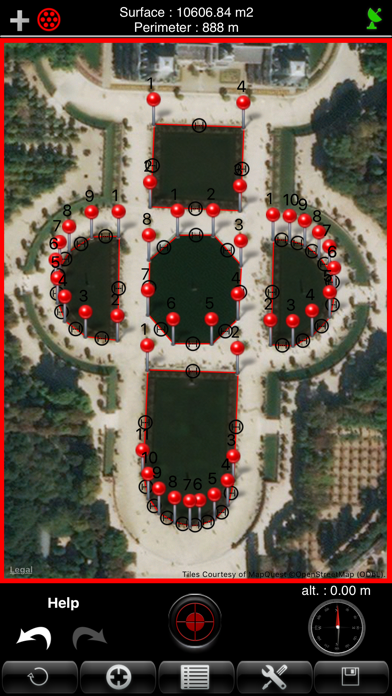

- Measurement of several surfaces on the same plane.

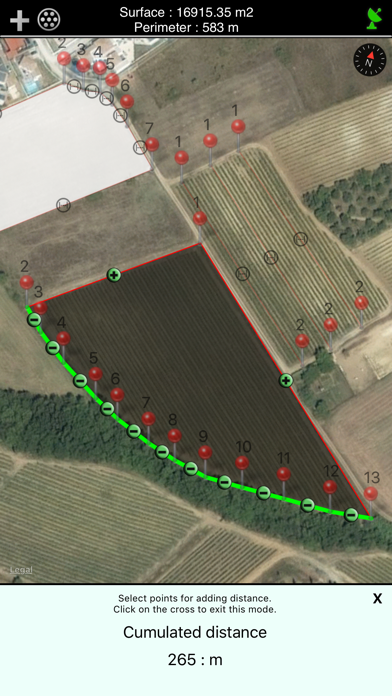

- Measure of cumulative distance.

- Viewing the perimeter and intermediate distances.

- Viewing a compass and altitude for better geolocation.

- Points Informations:
At any time, the user can know the seized coordinates of the seized points

- Movement of the seized points:
Every seized point can be moved with the finger to adjust its position.

- Deleting a point:
A point can be deleted individually.

- Manually inserting a new point between two existing points:
You can insert a new point between two existing points to refine the tracing of the plan.

- Display of the surface:
The surface is calculated and shown in every new seized point.

- Archiving of the measures:
Every moderate ground can be archived with a personalized name. Every archive can be opened again and then again be edited.

- GPS reception indicator:
The icon situated above on the right by the application indicates the quality of reception of the GPS. The green color indicates a good reception, the orange an average and the red a bad reception.

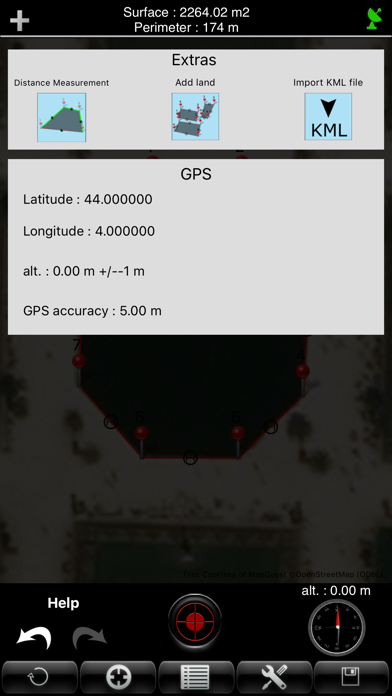

- GPS Information:
The button "information" allows to show the information of localization of the GPS.

- Export plans in the format 'KML':
To export a plan with the format 'KML', you must go to the backup list and press the icon 'email'. A2 adds, in the e-mail, the plan attached. You simply write the recipient and send the message.

- Import KML file.

- The backup list shows the date, the area and perimeter of the ground saved.

- Function "undo" and "redo" to undo or redo the last action performed.

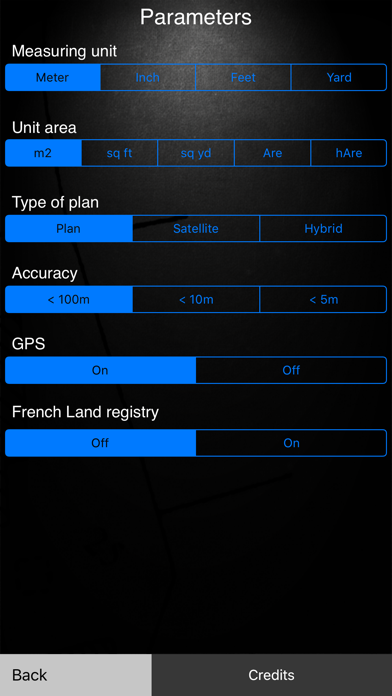

Options.

Several options of measures are available:
- Unit of measure: meter, inch, feet and yards.
- Unity of measure of the surface: m2 square feet, square yard, are, ha.
- Type of map: Map, Satellite, Hybrid (map + satellite).
- Accuracy in GPS mode: 100m, 10m, 5m. This option allows to forbid the seizure of a point if the precision of the GPS is lower than the instruction.

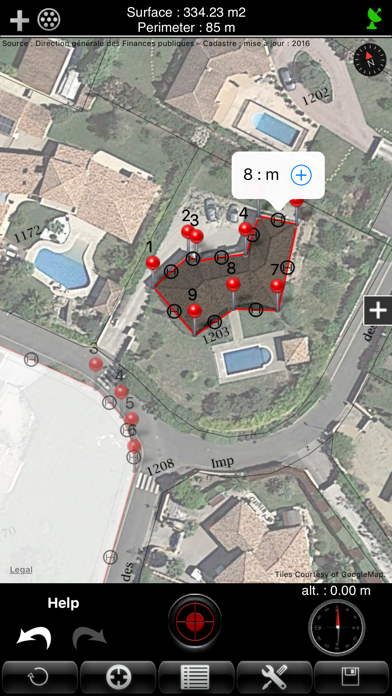

- Possibility to display the French Land registry with overlay on the map.

web site for help : http://www.web-dream.fr/A2eng/
