Ham Mixer Mobile

HamMixer Mobile turns your iPhone into a full remote control for your ham radio station. Connect securely to HamMixer Server at your home QTH and operate your transceiver from anywhere in the world -- with real-time audio, full radio control, and near-zero latency.

Designed by CT7BAC, a licensed ham operator, for ham operators.

REMOTE RADIO CONTROL
- Set frequency with a velocity-sensitive tuning wheel and haptic feedback
- Switch bands (160m-6m) with one tap and automatic band memory recall
- Change modes: LSB, USB, CW, AM, FM
- Toggle DSP controls: NB, NR, ANF, Preamp, AGC, IF Filter
- Adjust RF power, control the antenna tuner, exchange VFO A/B
- Real-time S-meter with peak hold, TX power and SWR indicators
- 7-segment frequency LCD with live band plan display

REAL-TIME WATERFALL
Full-screen landscape spectrum scope with drag-to-tune, frequency snapping, adjustable contrast, and edge cycling. Native Icom scope data streamed over the network.

VOICE MEMORY & CW KEYER

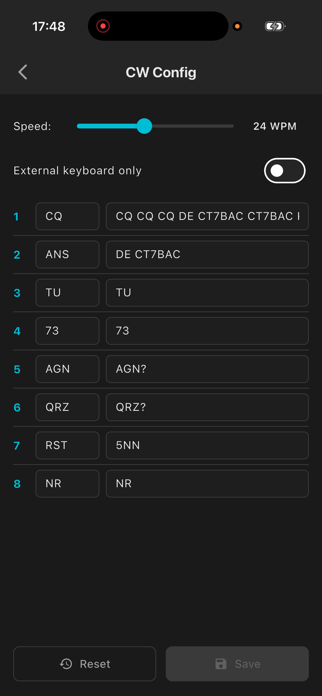

- 8 customizable voice memory buttons (M1-M8) for voice keyer playback. In CW mode, buttons switch to programmable CW macros.
- Character-by-character text-to-morse keying with adjustable speed (6-48 WPM). The radio handles all timing -- immune to network latency.
- Connect a CW paddle to the BLE accessory module for real iambic keying (Mode A/B) with low-latency local sidetone. The keyer runs on your phone -- network latency does not affect your timing.

QSO LOGGING
Tap the frequency display to open a dedicated log screen. Band, mode, and frequency auto-fill from live radio state. Scroll-wheel time pickers and RST selectors. Includes its own PTT button and CW entry so you can keep working the contact while logging.
- Saves to portable ADIF 3.1.4 file (compatible with Log4OM, HRD, and others)
- Optional automatic upload to QRZ.com Logbook

MIC DSP
Shape your TX audio before it hits the radio:
- Mic gain (0-20 dB)
- Compressor with adjustable ratio
- Noise gate with envelope follower
- 8-band parametric equalizer (80 Hz - 3.2 kHz)
- Real-time mic level meter and test recording with playback
- Monitor button for live loopback through headphones

WEBSDR AUDIO MIXER
Mix live WebSDR receiver audio with your radio audio directly on your phone:
- Stereo output: radio on left, WebSDR on right (Android)
- Independent volume and mute per channel with real-time level meters
- Adjustable delay (0-1500ms) with one-tap GCC-PHAT audio synchronization
- Automatic frequency and mode tracking — WebSDR follows your radio
- Embedded WebSDR page view with pinch-to-zoom
- Configurable WebSDR and KiwiSDR site list

DX CLUSTER
- Real-time spots
- DXCC resolution
- one-tap tune-and-log

ENCRYPTED & RELIABLE
- TLS 1.2+ encrypted control channel
- AES-128-CTR encrypted audio stream with per-session keys
- Opus codec at 48 kHz / 48 kbps for broadcast-quality radio audio
- Automatic reconnection on network drops
- Background audio keeps playing during phone calls and multitasking

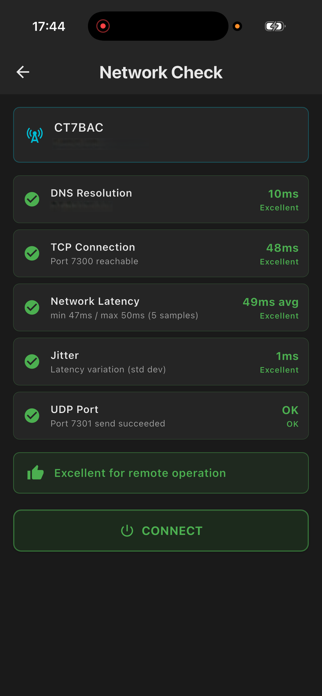

- Built-in network diagnostics: latency, jitter, and UDP connectivity tests

ADDITIONAL FEATURES
- PTT lock and VFO lock to prevent accidental transmission or tuning
- Audio auto-mute during phone calls
- Settings backup & restore
- Multiple saved server profiles
- Remote radio power off
- BLE accessory module: wireless VFO encoder, PTT/TUNE buttons, and CW paddle jack (Raspberry Pi Pico W)
- Keep screen on option

SUPPORTED RADIOS
- Icom transceivers with CI-V protocol: IC-705, IC-7100, IC-7300, IC-7610, IC-7760, IC-7851, IC-9700, and more.
- Kenwood TS-590S/SG.
- Automatic model detection.

REQUIREMENTS
HamMixer Server (Windows) must be running at your home station, connected to your radio via USB. The server is included in the HamMixer Full Bundle license ($39.80 one-time). The mobile app itself is free.

Visit http://www.ct7bac.com for documentation, setup guides, and a 14-day free trial of the desktop suite.
