PlantCalculator

The nameplate reads "52.7 kg/cm²G." Your reference is in psi. The formula wants MPa.
You can stop doing that conversion in your head.

Plant Calculator brings together the calculations used every day in refinery and
chemical plant equipment inspection — one app, built for the field.

■ Type the number on the nameplate, as-is
Every input field has a unit selector. Enter kg/cm²G, psi or bar exactly as
written, and the app does the conversion. If you think in kg/cm², set it as your
default in Settings and every screen opens that way. 15 categories, 65 units.

■ Works where there's no signal
Inside a vessel, inside a tank — every calculation runs entirely on your device.

■ Enter only what you already know
- Pick a nominal size and schedule, and OD and wall are filled in (ASME/JIS, 45 sizes)
- Pick a material and temperature, and the allowable stress is interpolated and
filled in (9 materials)
No more flipping through dimension tables.

■ Main features
- Quick Check: from pipe and inspection data, review original wall, required
thickness, corrosion rate, remaining life and thickness margin together
- Required thickness: minimum wall for piping and pressure vessels under internal
pressure (JIS B 8265 / High Pressure Gas (KHK), ASME Sec.VIII Div.1, ASME B31.3;
cylinders, heads, straight pipe and elbows)
- Corrosion rate & remaining life from previous/current thickness and elapsed years
- Metal loss check: average, minimum and variation from readings, with simplified
general and local metal-loss checks
- Vertical tower check: internal pressure, dead weight, wind and seismic (static
seismic coefficient method); checks tension and compression for operating and
shutdown cases and shows a reference thickness. Skirt included
- External pressure: simplified allowable external pressure check for cylinders
- Nozzle reinforcement: area replacement method
- Relief valve sizing: required orifice area based on API 520
- Piping: support span, pressure drop and velocity
- Vessel: flange, bolt torque, flat plate, cone and support loads

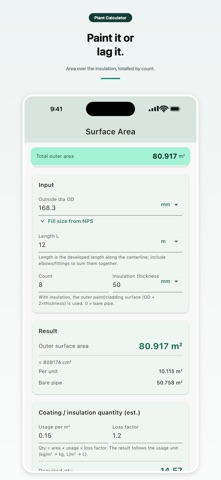

- Surface area: outer area of pipe, elbow, head and reducer; add count and
insulation thickness for painting/cladding area and a material estimate
- Tank / line totals: connect elements to sum area, volume and weight
- Thermal expansion from temperature difference
- Calculator + equation solver: scientific calculator (trigonometry, logs, powers,
roots, memory, EE input, DEG/RAD) that also solves simultaneous equations in x, y and z
- Unit conversion: 15 categories, including multiplication and division with
units (e.g. 200 mm × 200 mm = 0.04 m²)
- Size quick reference: NPS to OD, wall, ID, volume and pipe weight

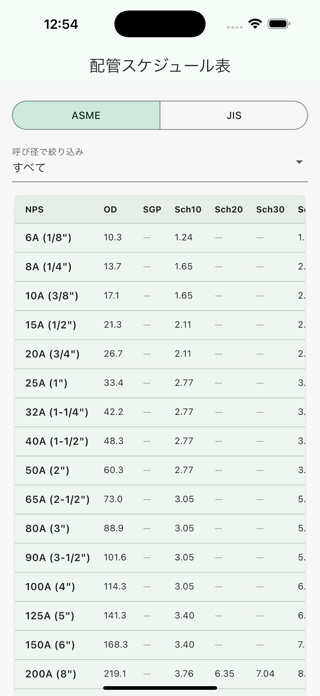

- Pipe dimension lookup: pick a size to see OD and wall per schedule
(ASME B36.10M/B36.19M / JIS, physical dimension reference values)
- Flange rating check: enter the rated pressure from your standard and compare
with design pressure (ASME B16.5, etc.; rating table not bundled)
- Material list: temperature-dependent allowable stress reference values
(based on High Pressure Gas example standards)
- Glossary for inspection and design terms
- Calculation history: save, delete and copy as CSV
- 8 languages (Japanese, English, Español, Português, 한국어, Deutsch,
العربية, Русский), dark mode

■ Important
This app is a supporting tool for design and inspection. Formulas are
representative, and allowable stresses, dimensions and ratings are approximate
reference values. Always verify against the official formulas and latest values
of the applicable codes (JIS B 8265 / High Pressure Gas example standards /
ASME Sec.II Part D / B16.5 / B36.10M, etc.) before making any decision. Do not
rely on this app's results alone.
