SATFINDER BT DVB-S2

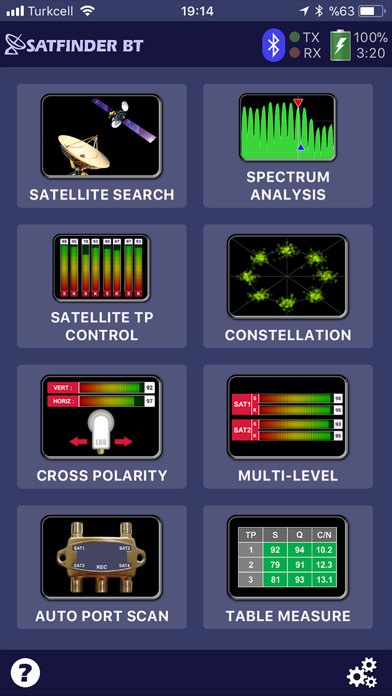

SATFINDER BT DVB-S2 application, the satellite signal is measured and analyzed with the making an additional patented electronic device. That communicates via Bluetooth; Satellite Antenna Signal measurement that work without additional equipment. For Signal Meter please contact : www.alpsat.com

SATFINDER BT can measure DVBS/S2 Satellite Signals with F.Plan

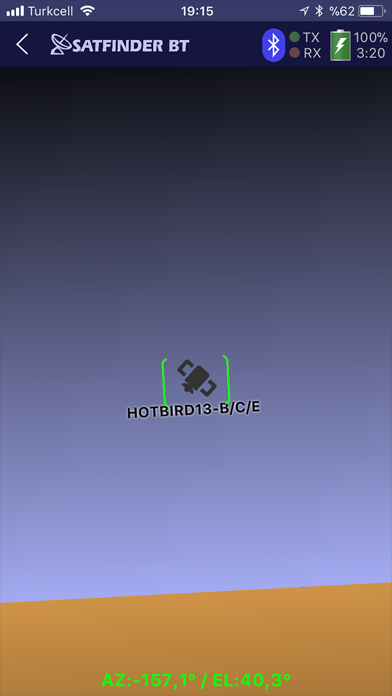

Function Real-Time Spectrum Analyzers . And you can find LNB Skew and Satellite Position with GPS datas.

SATFINDER BT is the most accurate professional measurement
instrument for to make dish antenna installation. Device can Show
950- 2150MHz frequency spectrum with smart phones.

There are 32 different LNB type memory. In addition, three special User Lnb
can be changed . 22KHz Tone - 13/18V can choose .Diseq- C 1.0-1.1-1.2
and supports Multiswitch systems.

You can make installation USALS motor systems and can measure UNICABLE I
and UNICABLE II systems over a single cable systems. LNB supply is protected against short circuit and on-screen alerts are available.

Device 3.7V 2000mAh Lithium Polymer rechargeable battery can
also be used via an external 220V AC charger and in-car cigarette
lighter charger can charge with the apparatus . Battery packs and
charging circuits are protected against short-circuit and over-current.
Average working time is up to 3 hours .

English, Turkish, German, French, Portuguese, Spanish and Italian Languages OSD Menu is available. Along with carrying case and battery with a weight of just 400 grams is super light measuring instruments .

Technical Specifications:

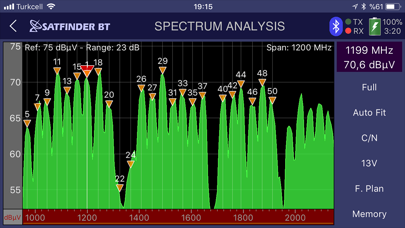

• Full Band Spectrum Analyzer Real-time ( 350ms )
• dBuV , dBmV or dBm signal strength indicator
• Real MER and BER measurement
• Detailed display of signal quality (BER evaluation)
• S/N and C/N measurement

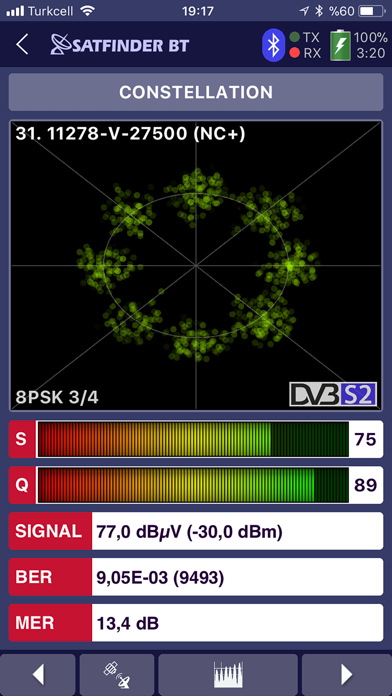

• Constellation I/Q Diagram
• 250 Satellite Capacity
• High quality gold-plated motherboard .
• LNB Supply : 13/18V , 22 kHz - 500/650mA
• Ka/Ku/C band support.
• V/H and L/R selectable polarity .
• KA-BAND L.O. Frequency: 17.25-20.25 GHz selectable
• 32 LNB Type and 3 Type interchangeable User Lnb
• Low Threshold level DVBS2 Tuner with ST Processor
• Level range: -65 dBm to - 25dBm
• FEC Qpsk 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
• FEC 8psk 3/5, 2/3, 3/4, 5/6, 8/9, 9/10
• Symbol Rate: 1 to 45Msps DVBS,DSS,QPSK and 8PSK-DVBS2
• Auto DiSEqC 1.0 , 1.1, 1.2 Recognition
• DiSEqC 1.2 and USALS Motor Control
• UNICABLE I ve UNICABLE II (EN50494 & EN50607)
• F - Connector Input
• Software update via Smart Phones.
• Satellite position detection max 1 second.
• Easy to use with small and light weight design
• Long life Lithium- Poly battery ( 2000mAh )
• 3 hours of battery lifetime (80-100mA LNB current)
• 2-hour shorter battery charging time
