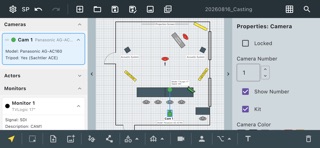

Set Planner

Set Planner is a professional tool for film and TV set design. Build floor plans quickly, communicate your vision to the crew, and export to JPEG or PDF in seconds.

Cameras
Place cameras with customizable lens angle, focal length, and field of view. Name each camera and link a label that moves with it. Lock proportions or enable free resize per element.

Actors & Equipment
Add actors, monitors, keyboards, and custom library items to your plan. Choose which elements can be resized and which stay fixed — per object.

Rigs
Place JIB Crane, Dolly, Rails, and Drone rigs with labeled dimensions. JIB and Rail support height-only resize by default; width resize can be unlocked separately.

Architecture
Draw walls freehand and snap doors and windows directly onto them. Walls, doors, and windows maintain correct proportions when scaled.

Drawing Tools
Pen and Polyline for freehand and multi-point paths
Line and Arrow with optional arrowheads at start and end
Rectangle, Ellipse, Triangle, and Star with adjustable fill and stroke
Text labels anywhere on the canvas
Bezier Curve Editing
Enable Bezier handle levers for any smooth curve — Pen, Polyline, Line, or Arrow. Drag the green control handles on the canvas to shape each segment precisely. Handles move with the object, stay consistent when you add or remove knot points, and arrow heads align to the true curve tangent at the endpoint.

Precision Controls
Enter Width and Height numerically for geometric shapes
Adjust arrow head length (10–50 pt) per element
Set curve simplification distance before applying
Snap to grid with configurable grid size
Group, lock, and reorder elements freely

Export
Save your plan as a native .splan project file, export to JPEG for sharing, or generate a multi-page PDF ready for print.

Works on iPhone, iPad, and Mac.
