Transitions Layouts is a specialized layout development tool designed for fabrication professionals, HVAC technicians, and sheet metal engineers who work with transition pieces and complex shape developments.

This app helps generate accurate layouts for square-to-round, rectangular-to-round, round-to-square, pyramid, and truncated pyramid shapes. It simplifies layout calculations and reduces manual drafting effort, making fabrication faster and more precise.

The app supports multiple development options including different joint configurations and line divisions, allowing flexibility for various fabrication requirements.

Layout Development Features:

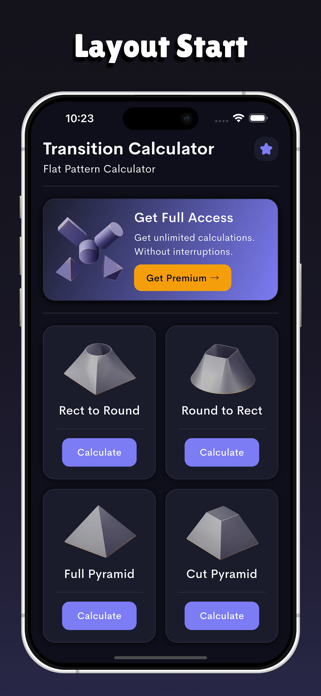

- Square to Round / Rectangular to Round Layout
- Round to Square / Round to Rectangular Layout
- Pyramid Layout
- Truncated Pyramid Layout

Development Options:
- 1 Part (Single Joint) Layout
- 2 Part (Two Joint) Layout
- 4 Part (Four Joint) Layout

Line Division Options:
- 12 Lines
- 24 Lines
- 36 Lines

Input Parameters:
- Base length and width
- Top diameter or top dimensions
- Height of shape

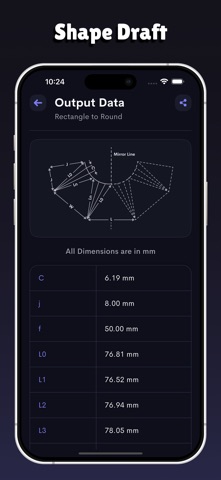

The app generates layouts based on the selected joints and line divisions, making it easy to mark, cut, and fabricate transition pieces accurately.

Transitions Layouts is highly useful for:
- Fabrication and sheet metal industries
- HVAC duct manufacturing
- Process equipment manufacturing
- Industrial and workshop applications

Designed with practicality and accuracy in mind, Transitions Layouts is an essential tool for professionals involved in transition piece development.
