Use Your Ear

The 9 pivot points:

· **50 Hz** — Depth & Weight
· **100 Hz** — Warmth & Punch
· **200 Hz** — Thickness & Mud
· **500 Hz** — Boxy & Gargle
· **1 kHz** — Nasal & Knock
· **2 kHz** — Edge & Clarity
· **5 kHz** — Presence & Bite
· **10 kHz** — Sizzle & Snap
· **20 kHz** — Air & Plastic

Each pivot mapped to perceptual adjectives — so you don't just memorize numbers, you learn what they SOUND like.

Four training modes:

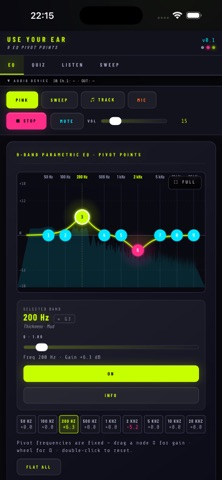

EQ Workbench — Interactive 9-band parametric. Drag nodes vertically for gain, scroll wheel for Q, double-click to reset. Frequencies are locked to the pivot points (that's the whole point).

Quiz — Blind pivot trainer. The app boosts or cuts a random pivot on pink noise at Easy / Medium / Hard difficulty. A/B between processed and bypass, then pick the frequency + direction. Scoring tracks your accuracy over time.

Listen — A/B reference mode. Set gain and Q on a single pivot, toggle A/B against bypass, and read the "Boost to..." / "Cut to..." cheat sheet. Train your ear by hearing the same EQ move at multiple frequencies.

Sweep — Manual sine tone across the spectrum, plus an automatic logarithmic sweep from 20 Hz to 20 kHz with the nearest-pivot readout. Hear the spectrum, build the mental map.

Sources:

· Pink noise (Paul Kellet generator, 4-second loopable buffer)
· Sine tone
· Log sweep
· Your own audio file
· Live microphone (with feedback warning)

Hearing safety built in:

Three independent ways to instantly stop audio:
1. Mute button — instant silence, playback can resume
2. Stop button — tears down the audio source completely
3. Always: keep your master volume LOW, use headphones at safe levels

Sine tones and sweeps are internally attenuated to 15% of full scale.

Why is it free?

Tomorrow's working sound engineers are today's audio students. We want you to learn properly — not paywalled, not gated, not crippled. No ads. No data harvesting. Just a real tool.

Where next?

· Surviving Audio — Plan and design PA systems before the show
· Soundtools Pro — Real-time tools during the show

Three apps, one story: train, plan, execute.
